Rear glass door hinge pair 103528 for LEER 100XL/100LE

Rear glass door hinge pair, reference 103528

This aftermarket pair is listed for the all-glass rear door on LEER 100XL and 100LE truck caps. It contains two black hinges and lists mounting hardware as included. Compare the existing hinge assembly and the cap's rear-door configuration before ordering.

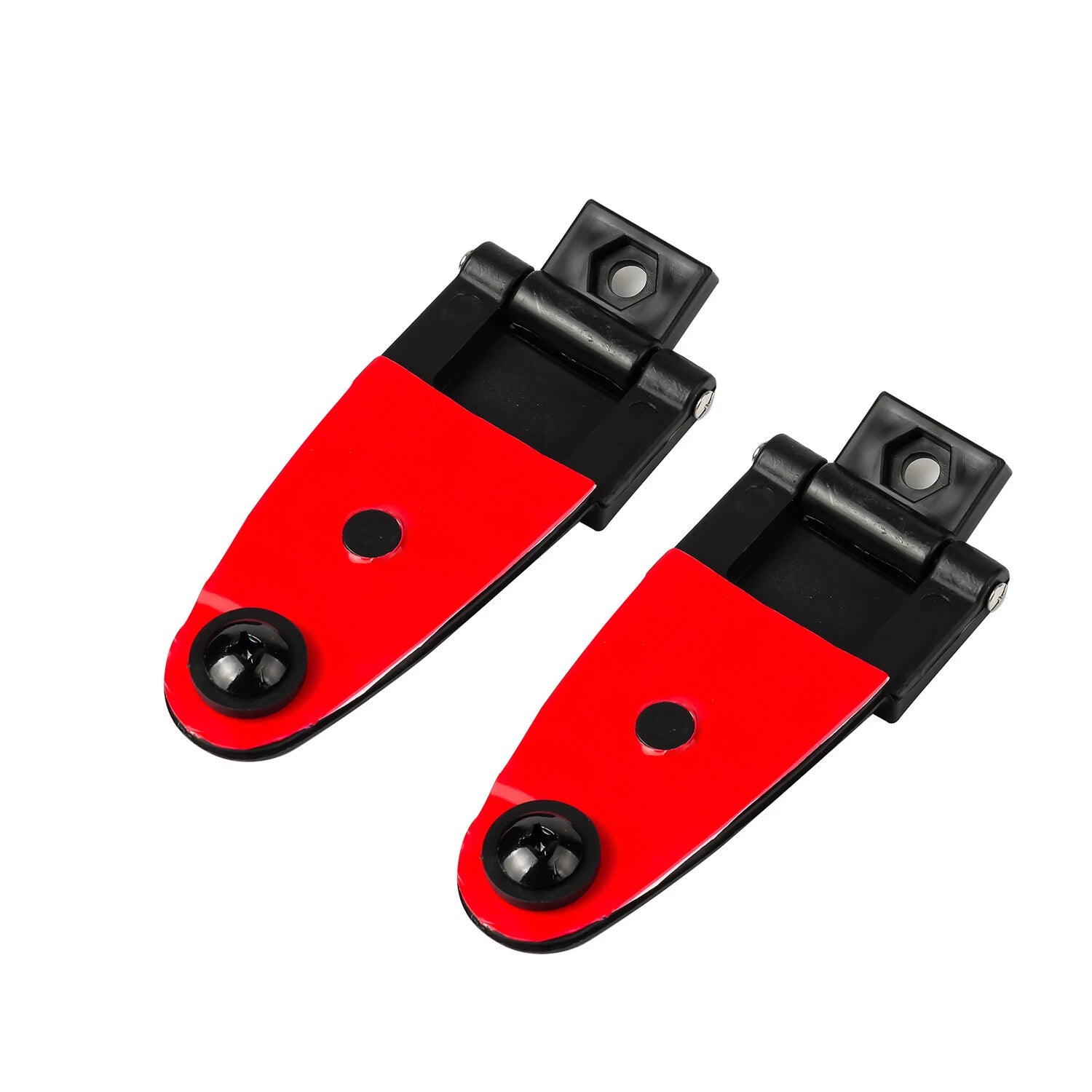

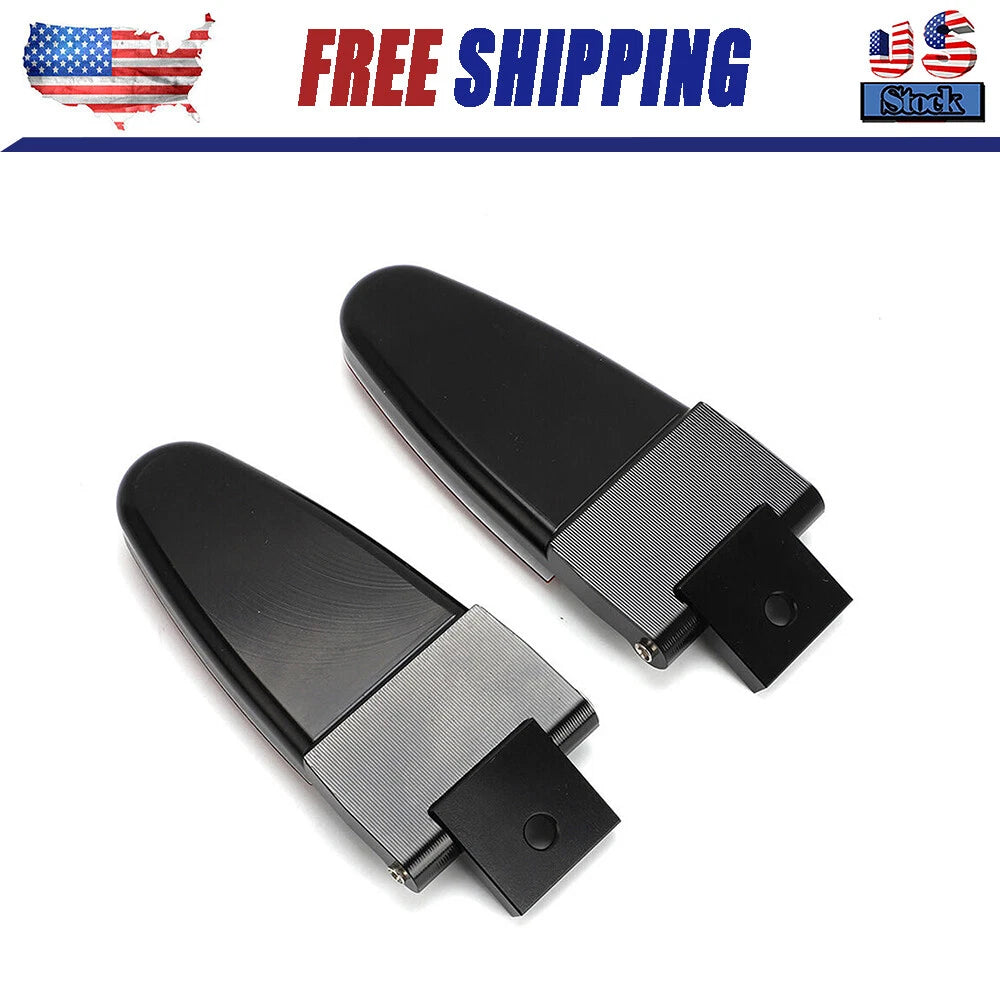

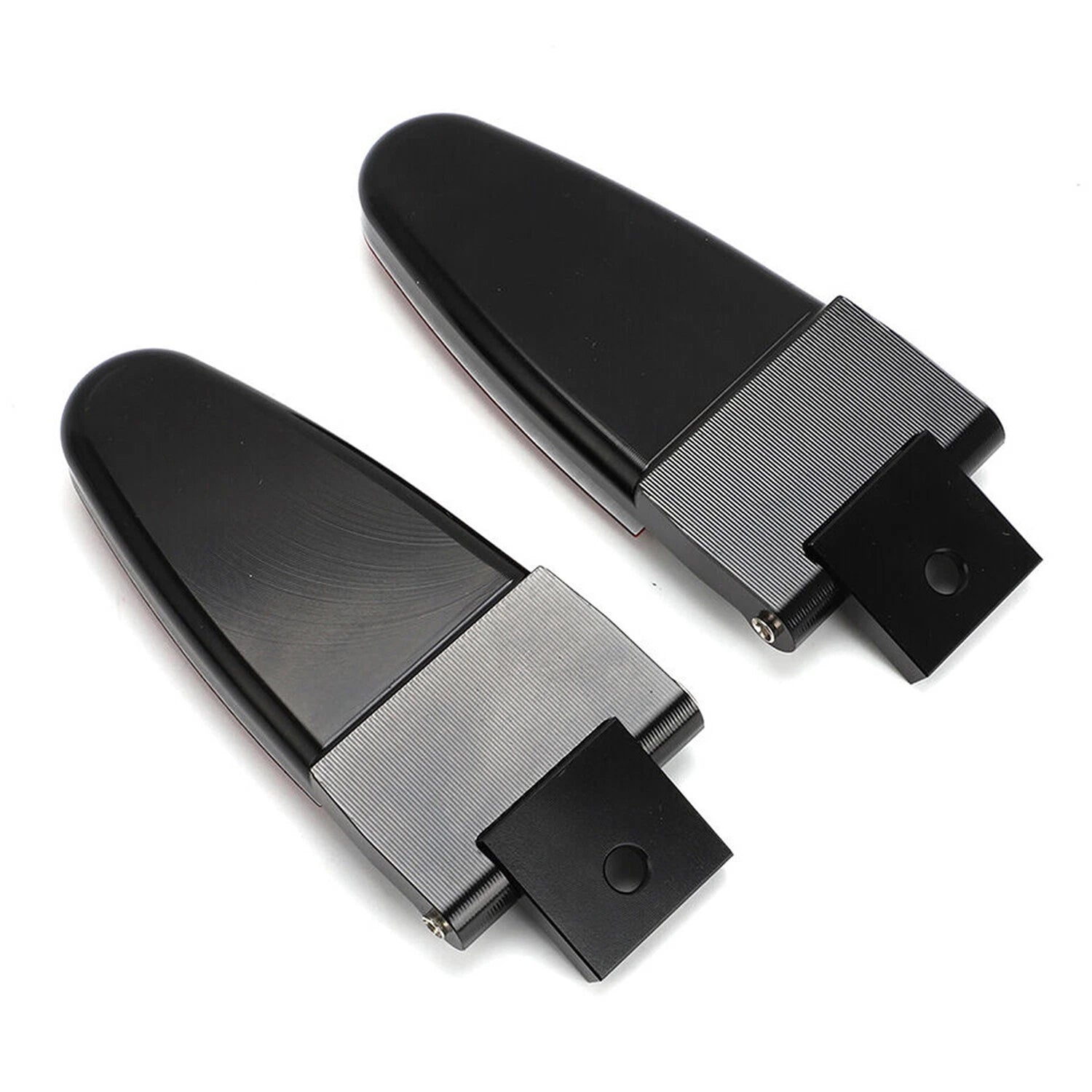

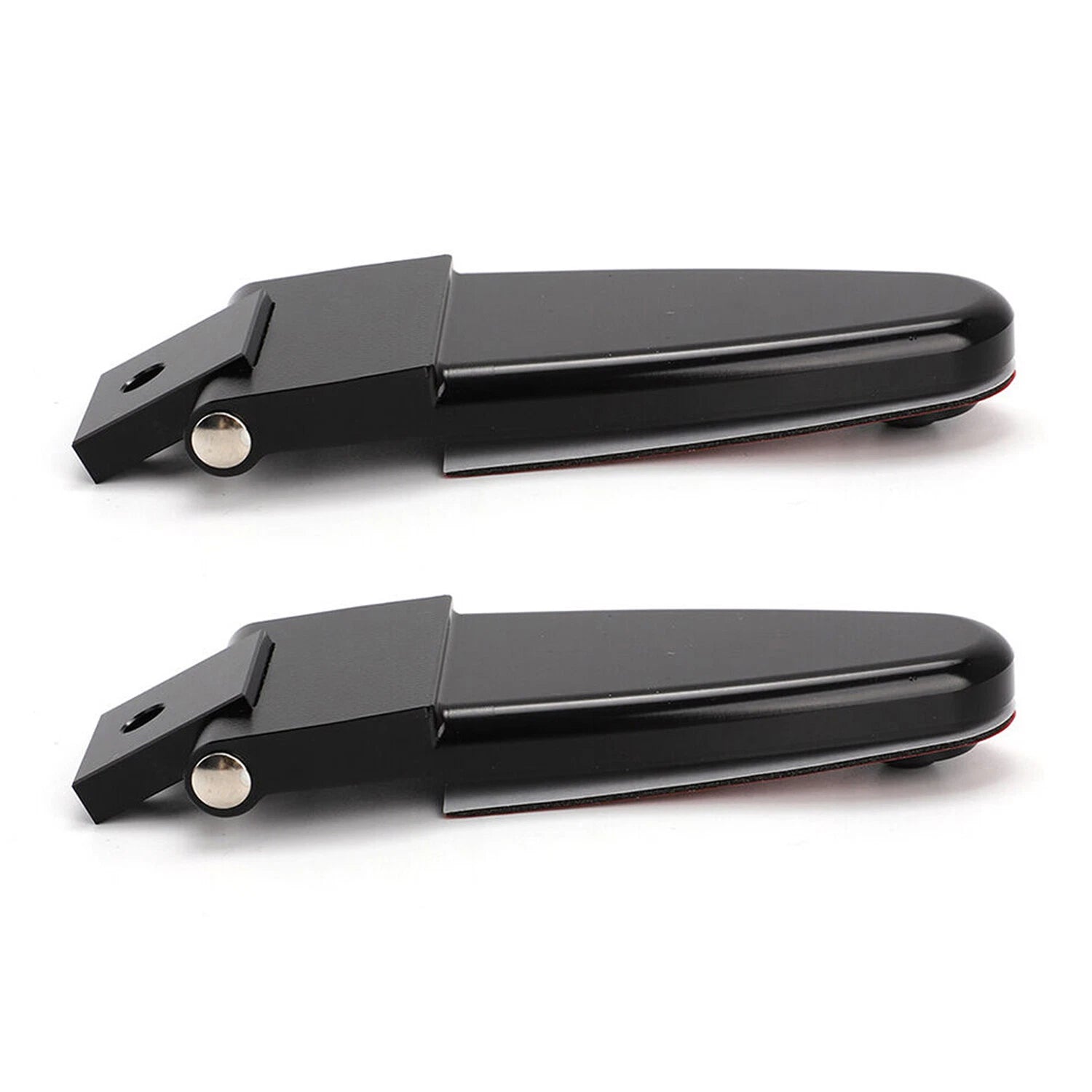

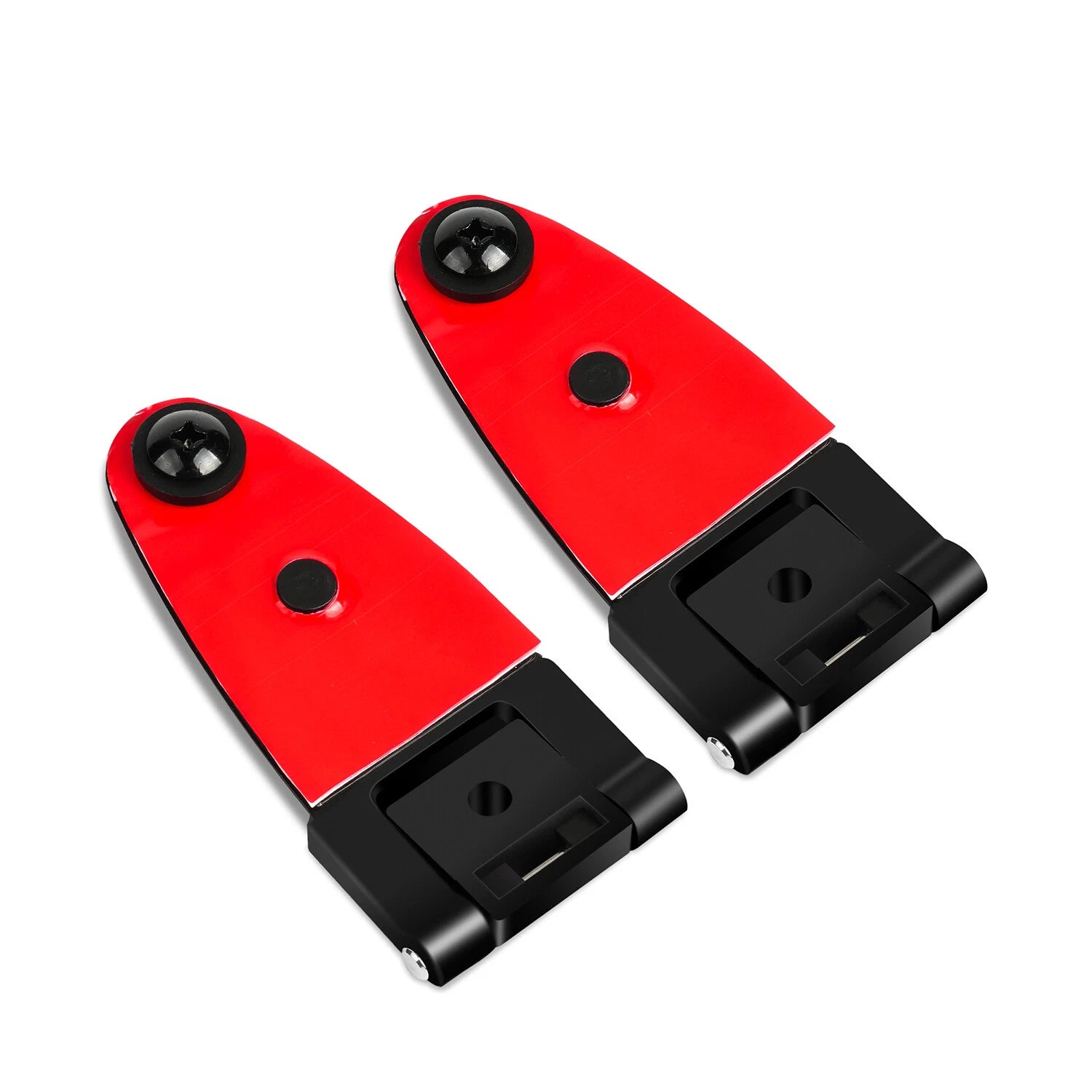

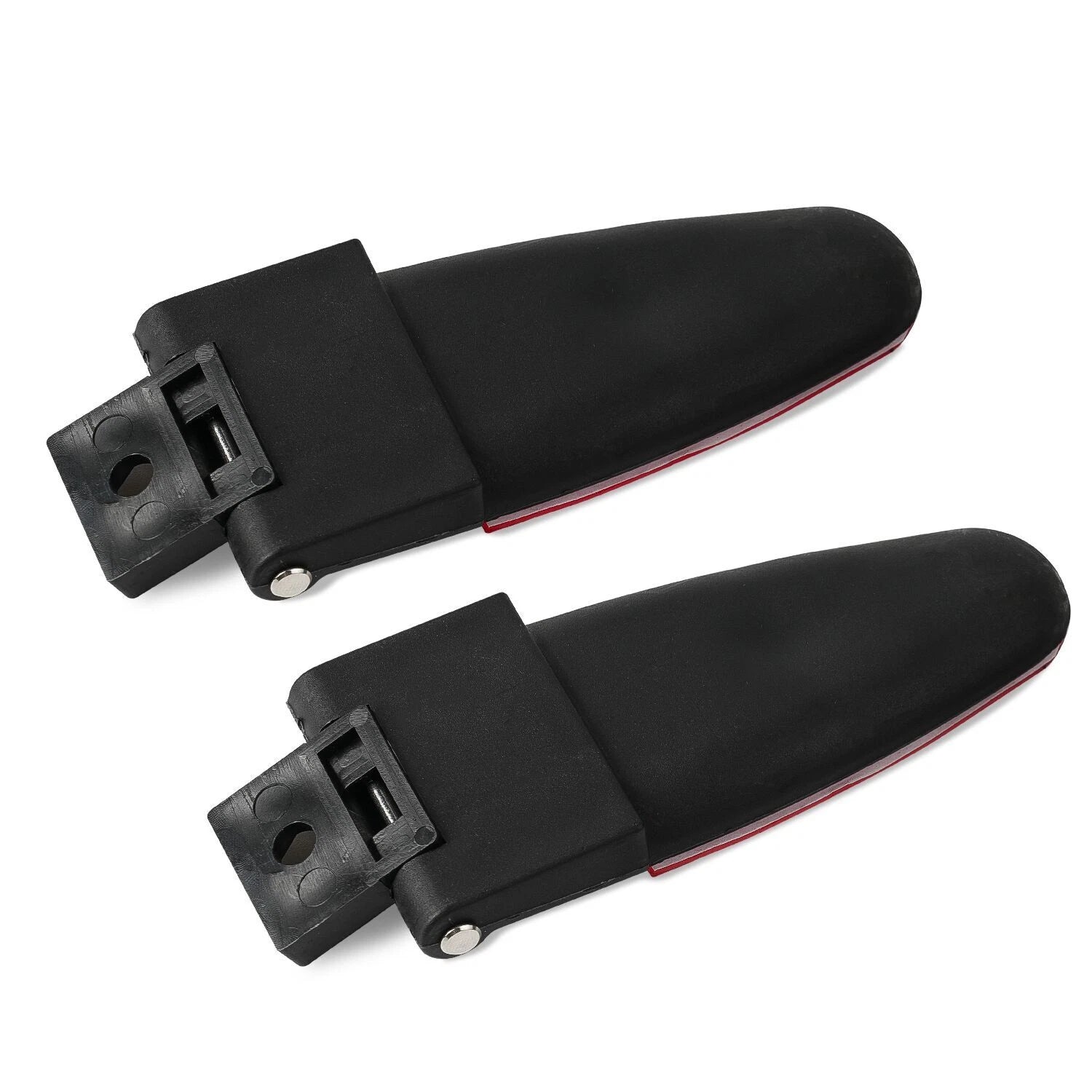

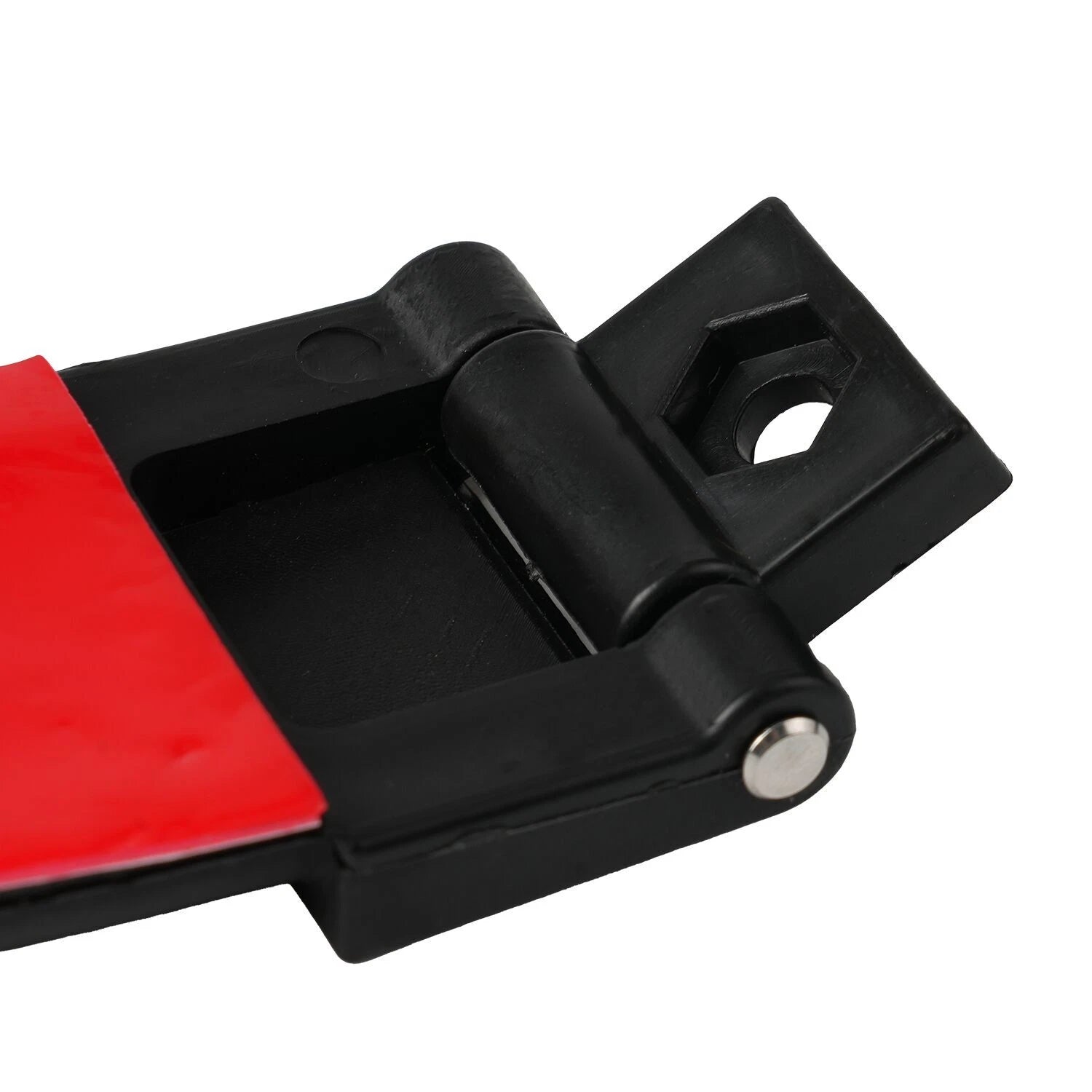

Each pictured hinge has a long rounded leaf and a smaller pivoting tab with a visible mounting hole. The two hinges have matching outlines; separate left-hand and right-hand markings are not shown. The listing does not specify the number or sizes of the supplied mounting bolts.

Pair details

Primary listed reference

103528

Additional listed references

71543 / 53248 / 67158

Hinge quantity

Two hinges

Listed cap models

LEER 100XL and 100LE; match the installed rear-door hardware

Color

Black

Attachment

Bolt mounting; hardware listed as included

Long leaf

Broad shape with a rounded end

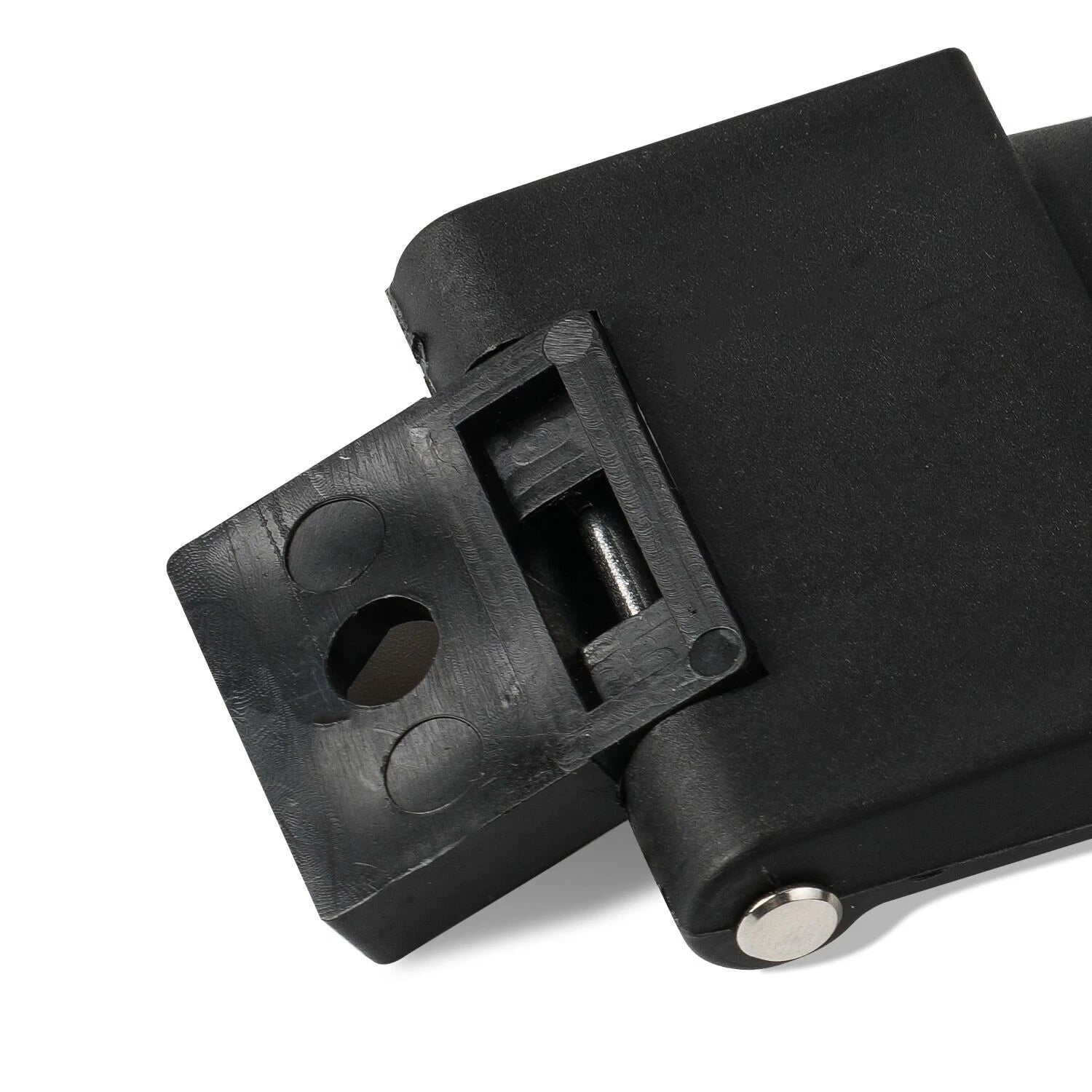

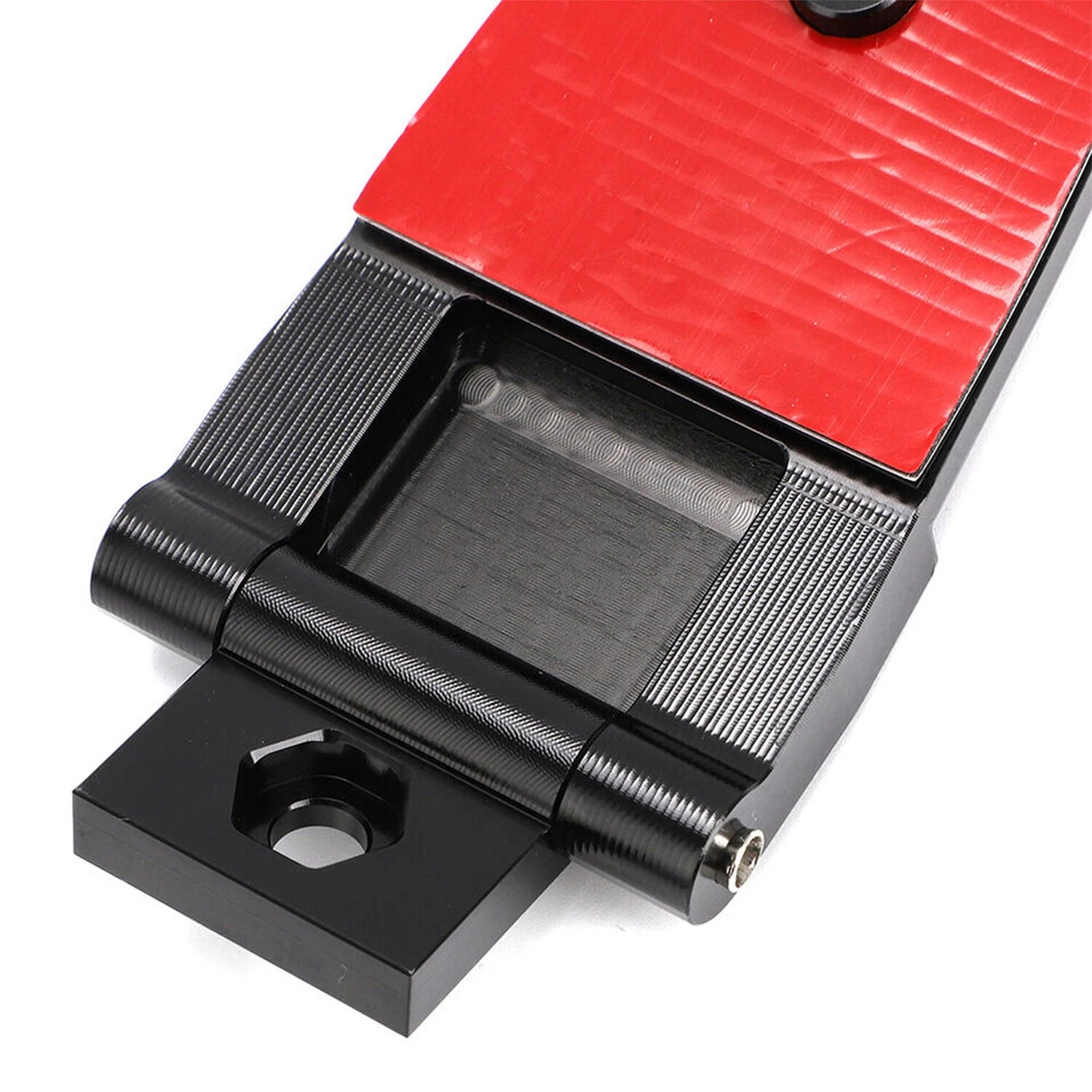

Pivoting tab

Smaller rectangular section with a visible mounting hole

Compare the glass and cap connections

Check both sides of the original assembly, including the cap-side attachment and the fittings that secure the hinge to the glass. Match the hole positions, leaf shape and clearance through the door's movement. A 100XL or 100LE model name alone does not establish that its hinge version matches this pair.

Hinge dimensions, mounting-hole spacing and supported glass thickness are unspecified. Confirm the bolt sizes and any required glass-contact pads, washers or backing pieces against the existing installation. No rear glass panel, latch or gas support strut is included in this hinge listing.

Support and align the rear door

Support the glass before releasing the existing hinges and follow the cap manufacturer's service instructions for the mounting hardware. Have damaged glass or mounting points assessed before fitting the replacements. Check door alignment and latch engagement after installation; tightening values must suit the specific glass-door assembly.
