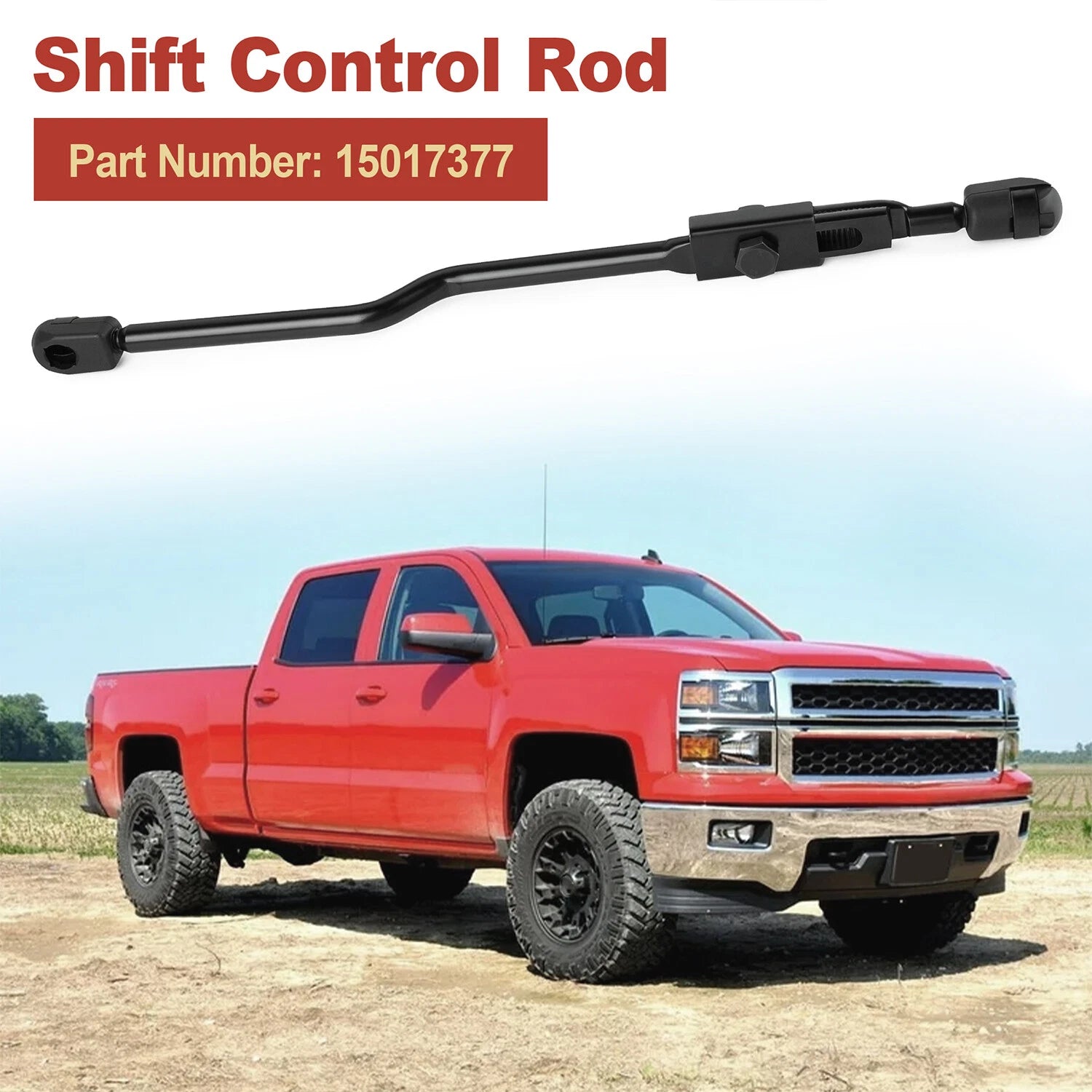

15017377 external transfer case shift control rod

15017377 external transfer case shift control rod

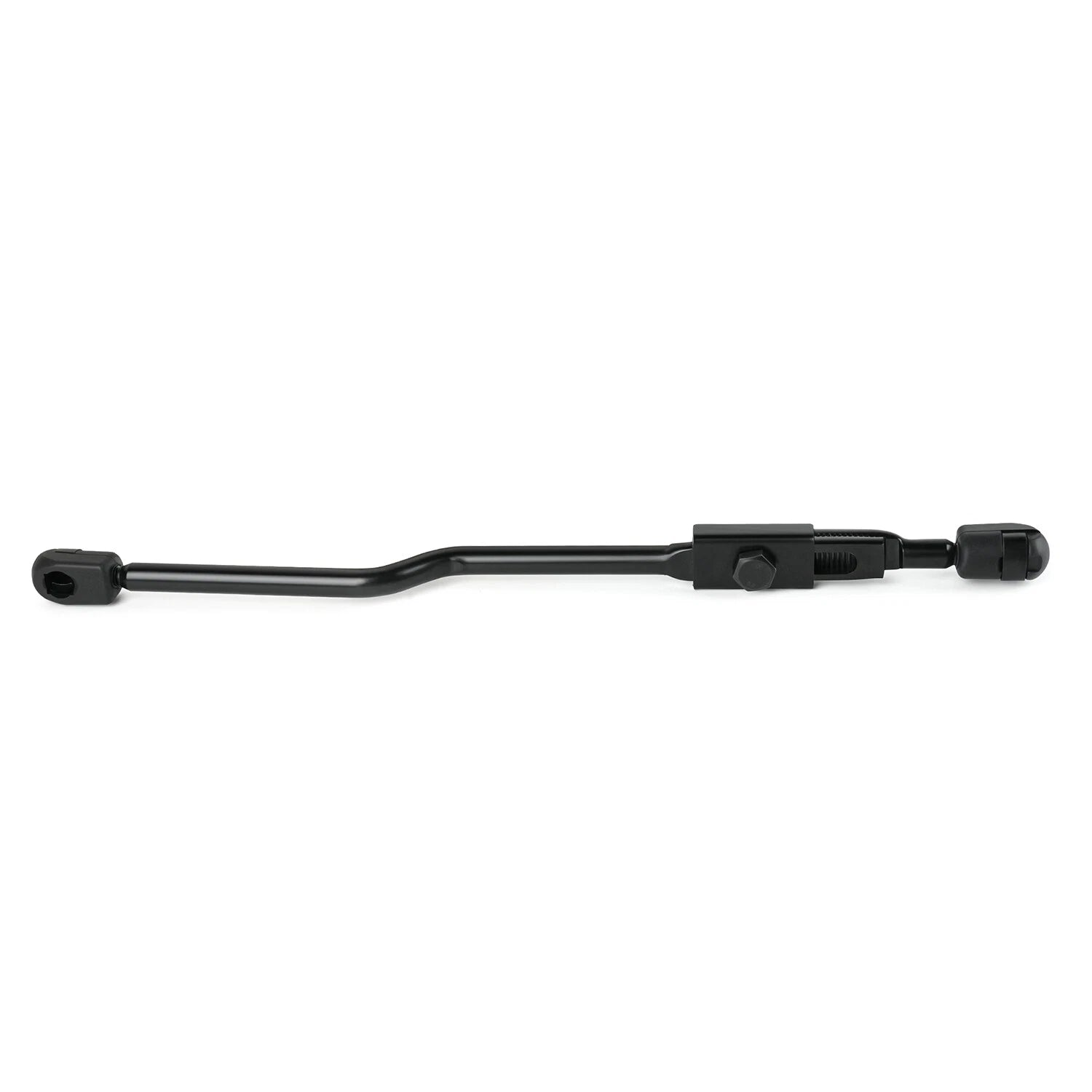

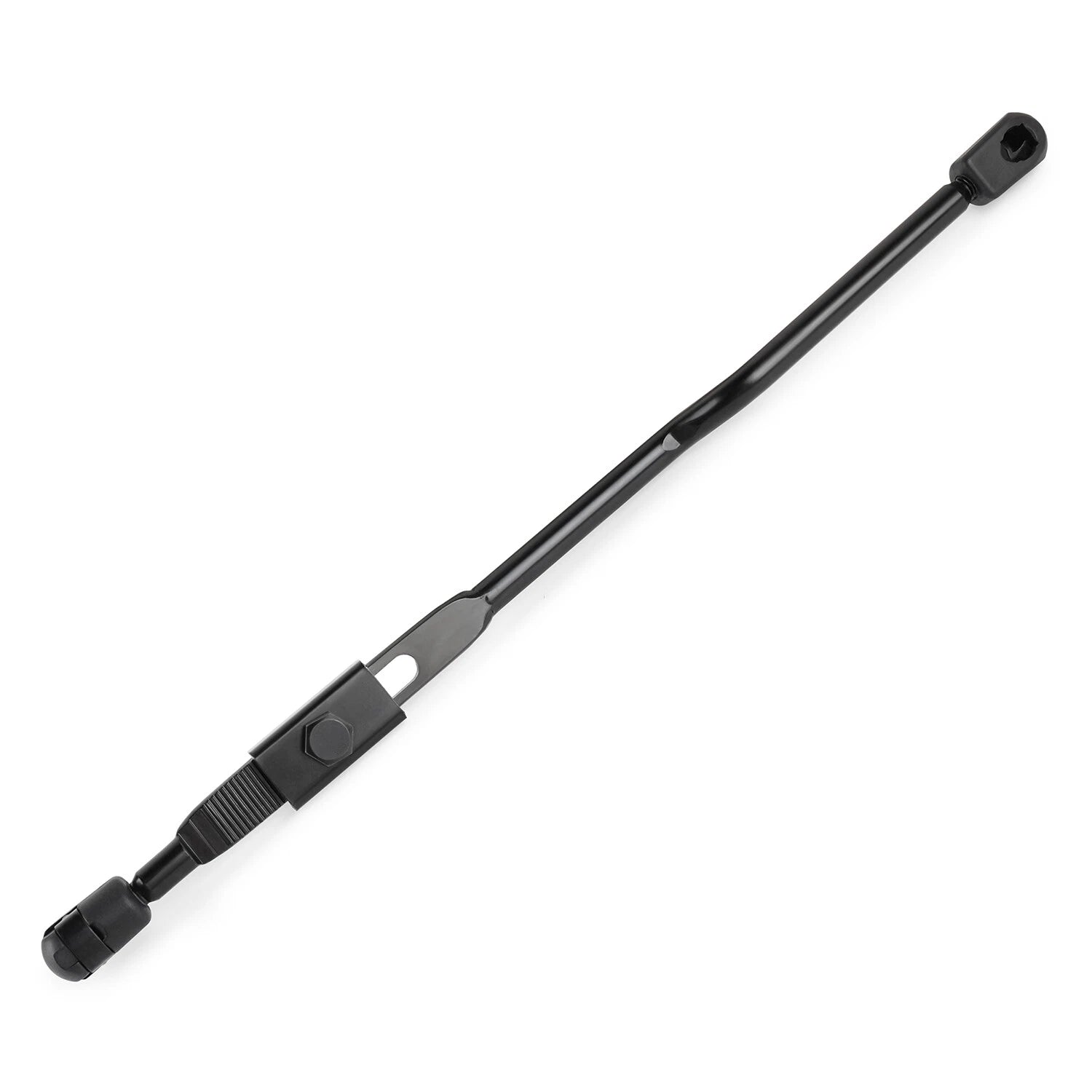

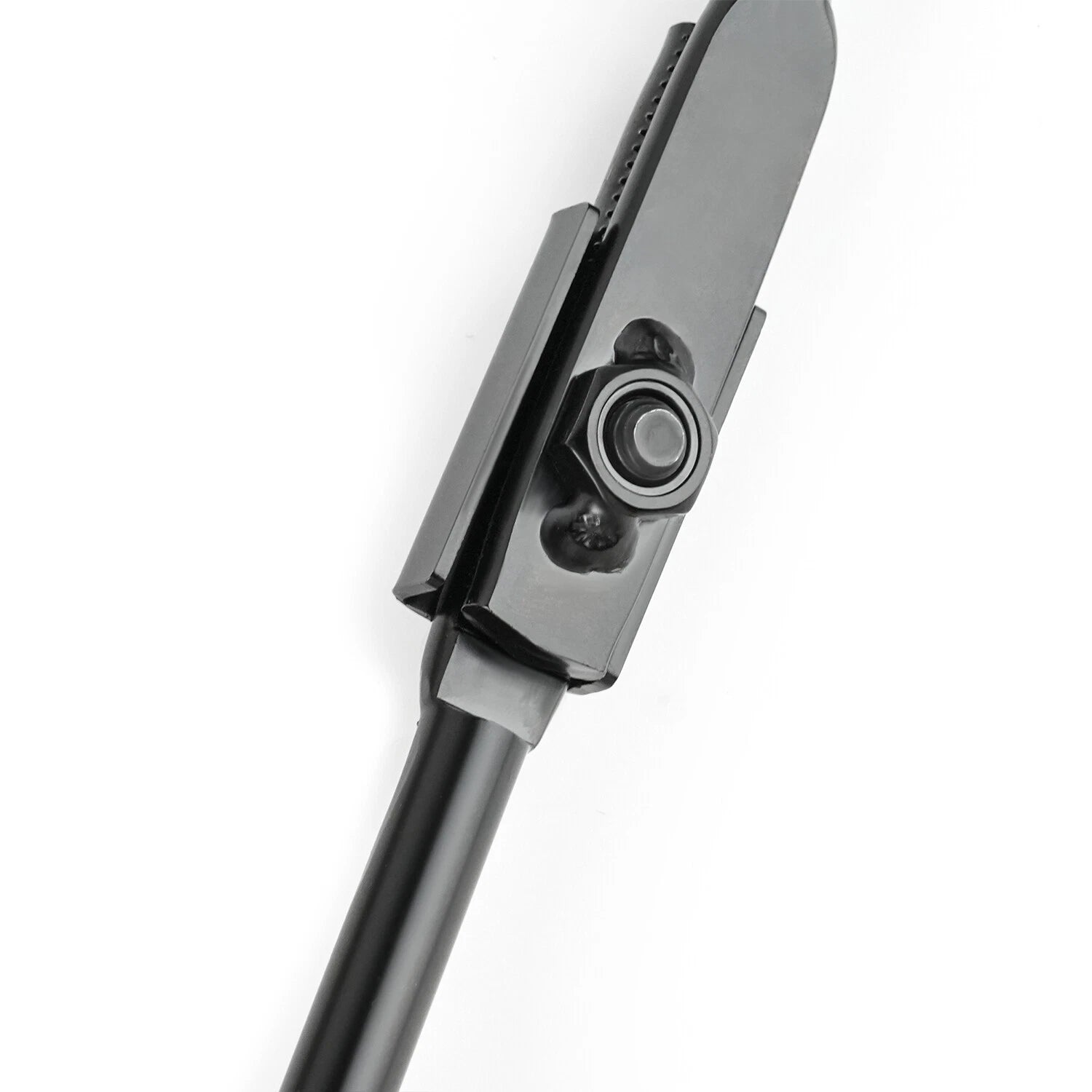

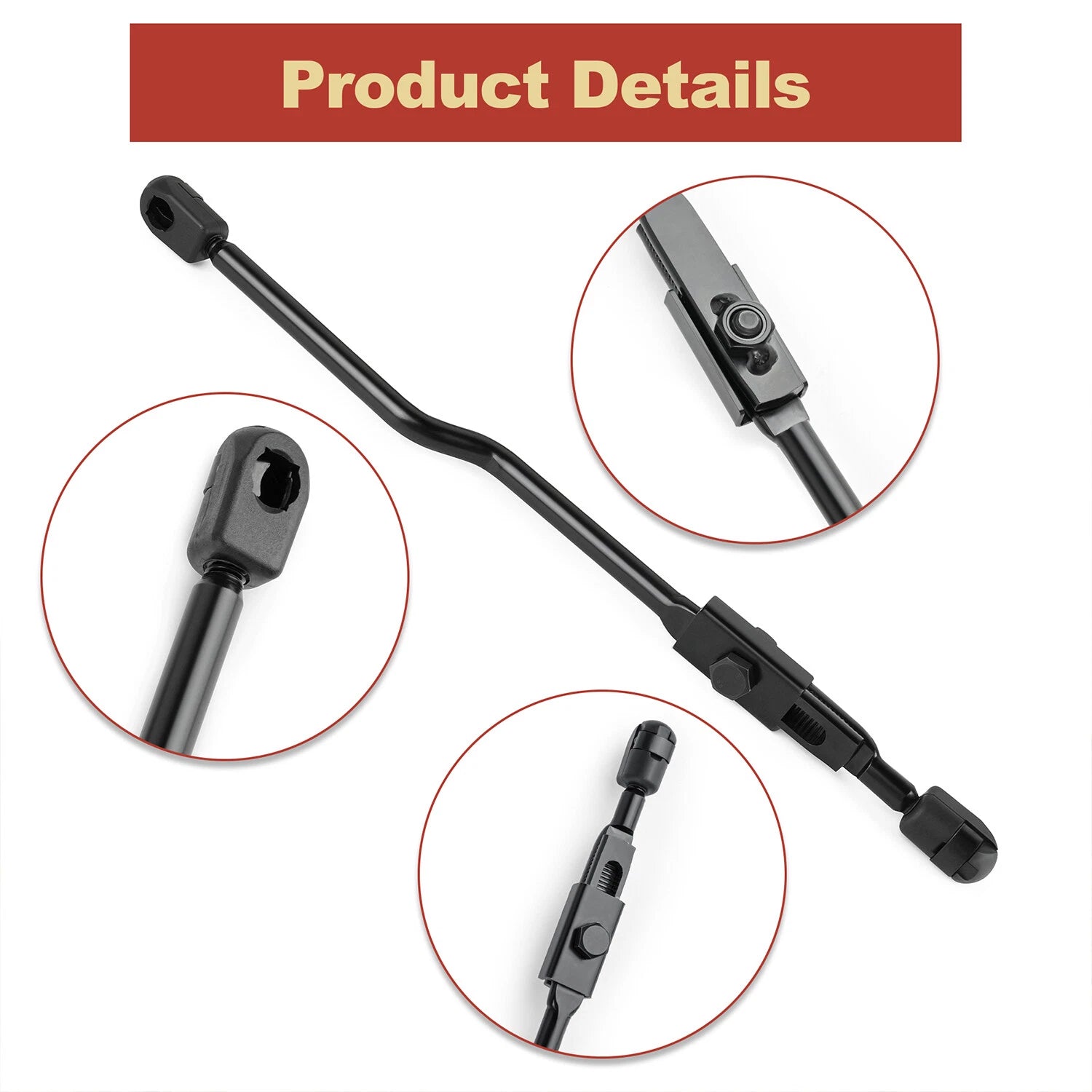

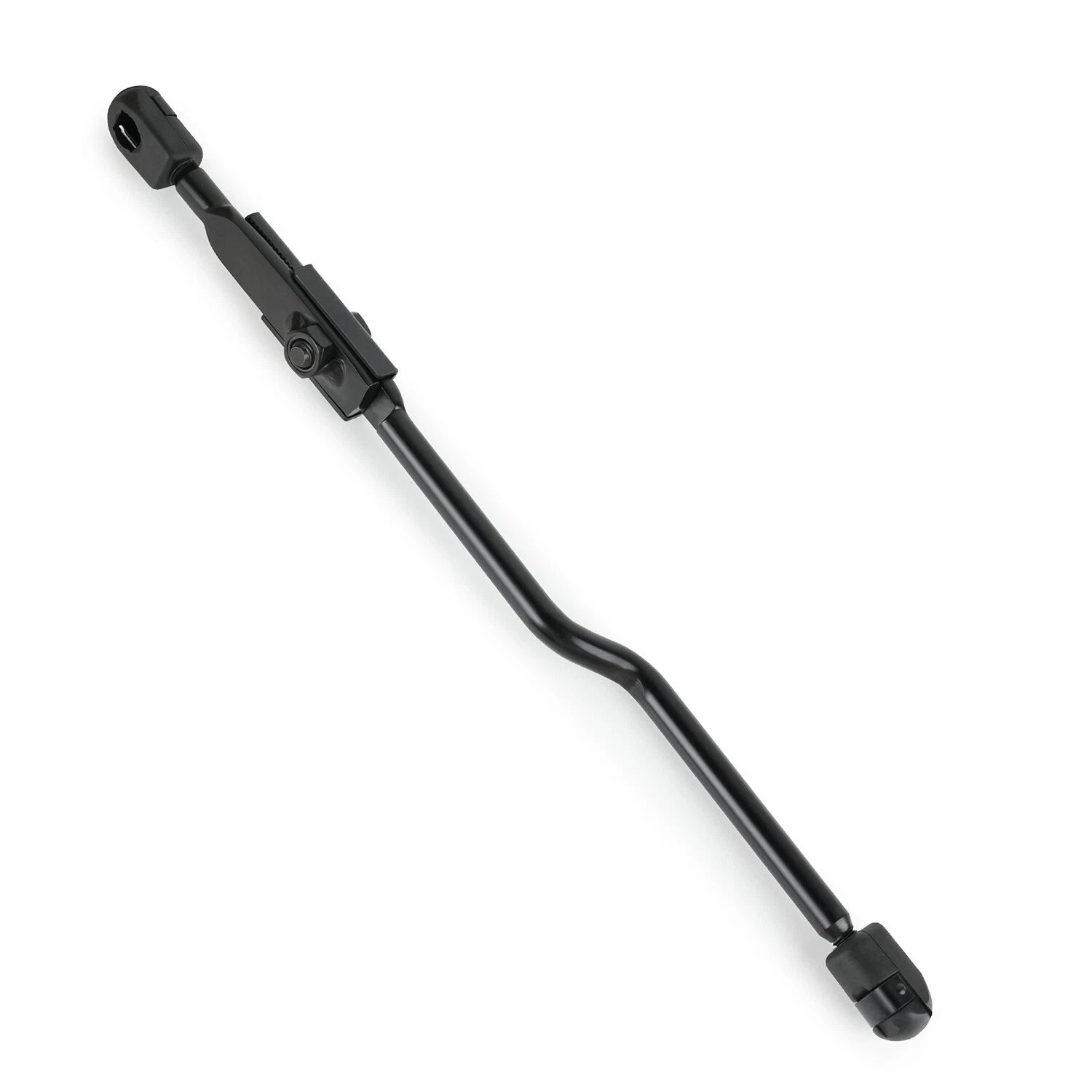

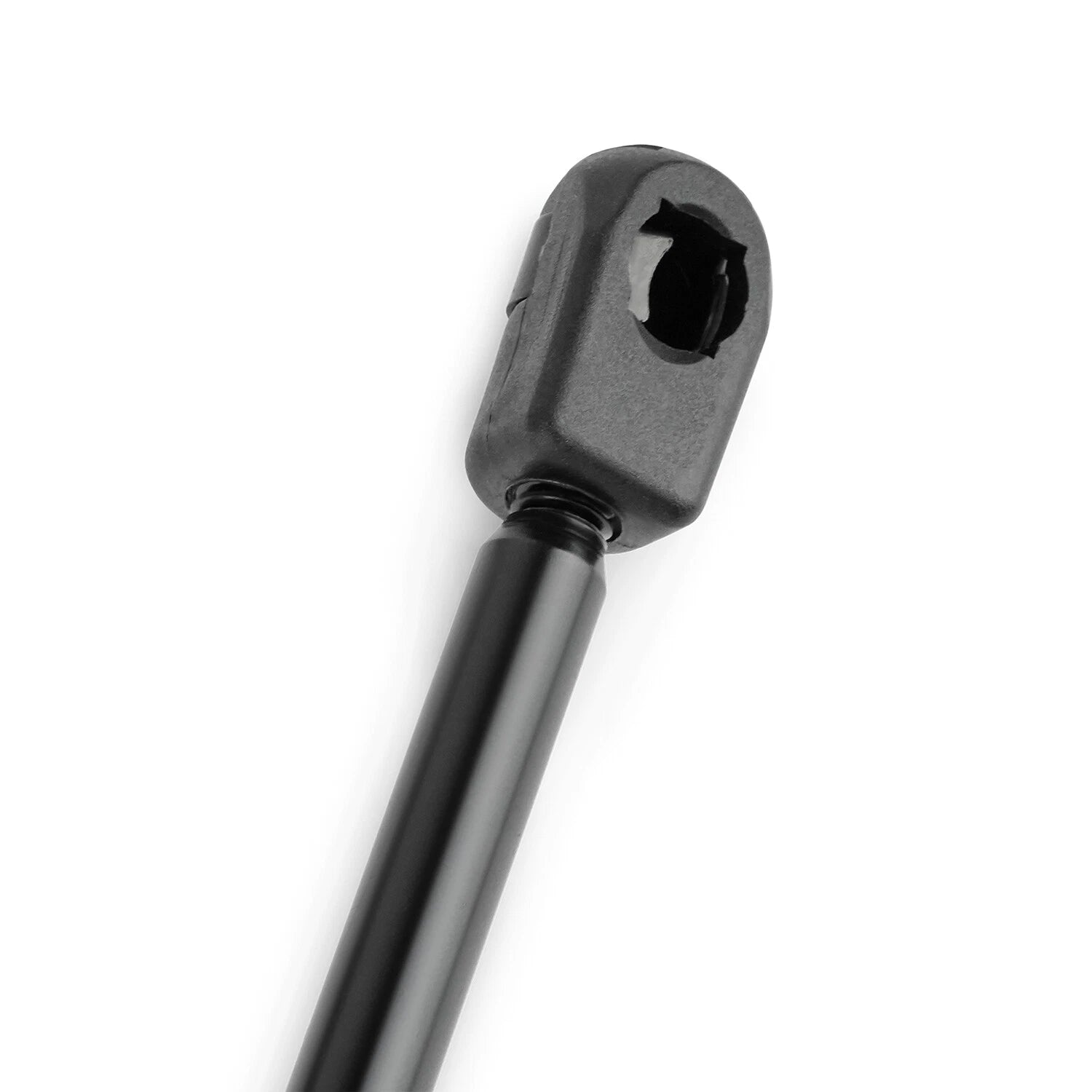

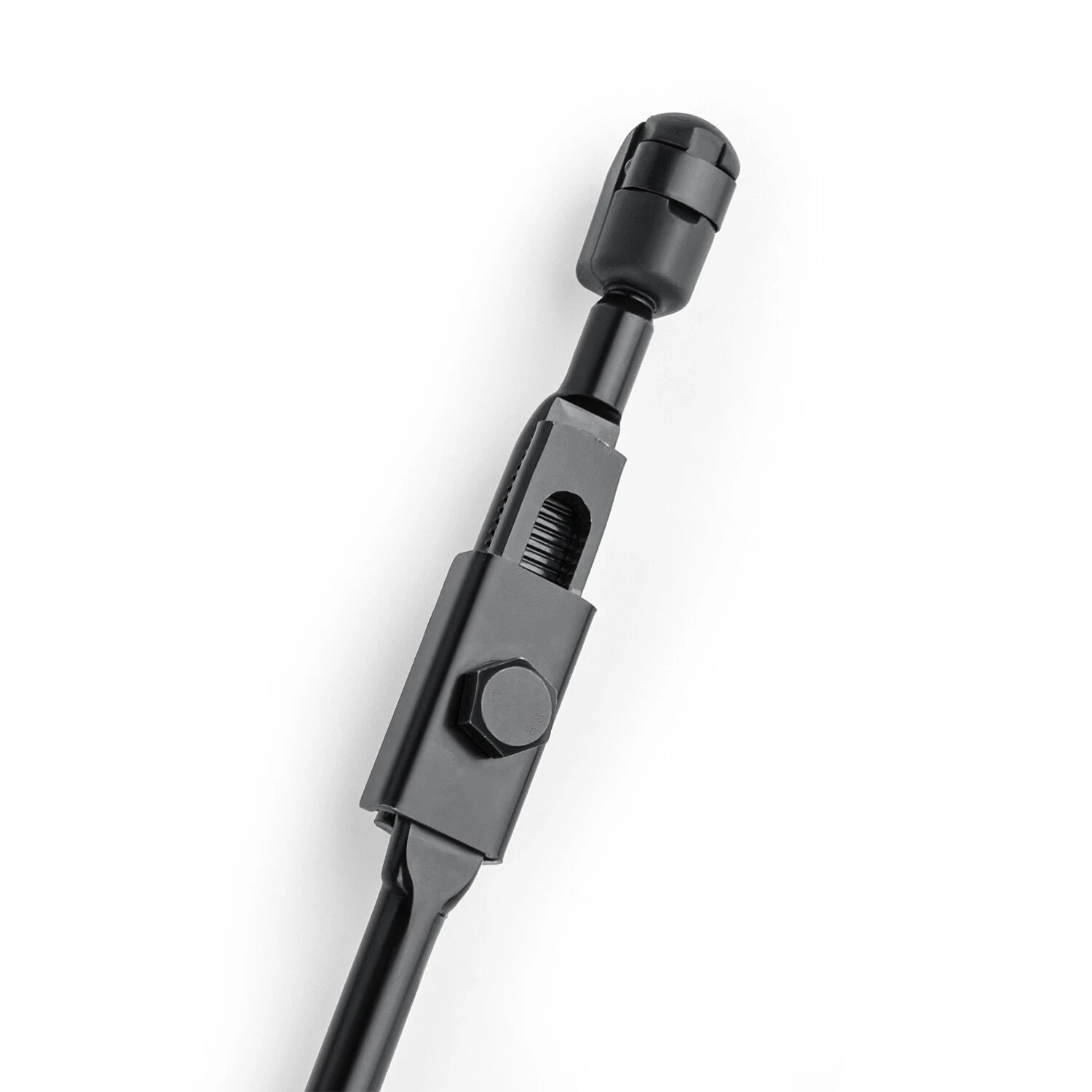

This aftermarket rod replaces the external linkage on a matching manually shifted transfer case. The assembly has socket-style ends and a clamped adjustment section. It is a mechanical linkage component, not an electric shift motor or a complete transfer case.

Part details

Part reference

15017377

Part type

External transfer case shift control rod

Condition

New aftermarket replacement

Supplied component

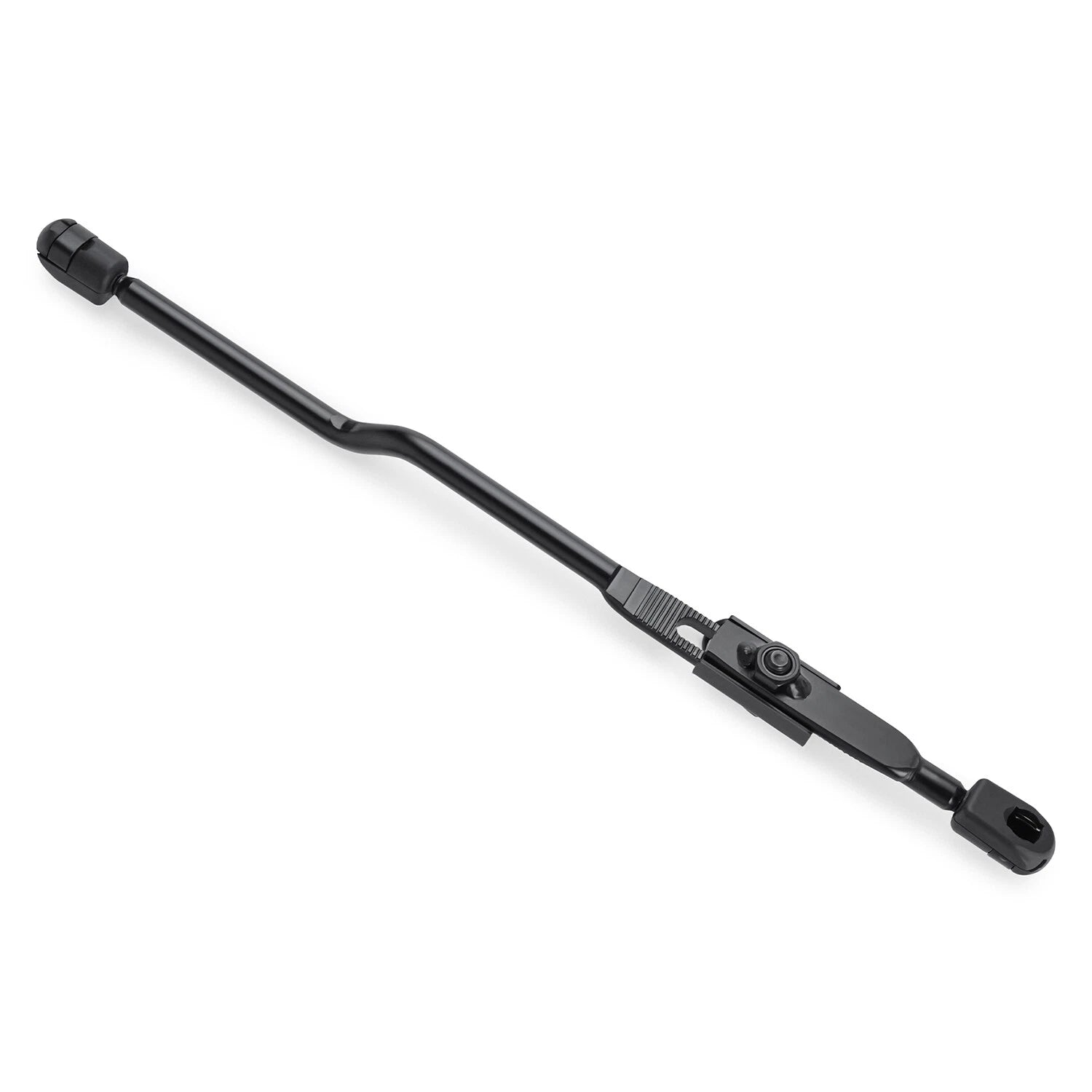

Shift control rod assembly shown

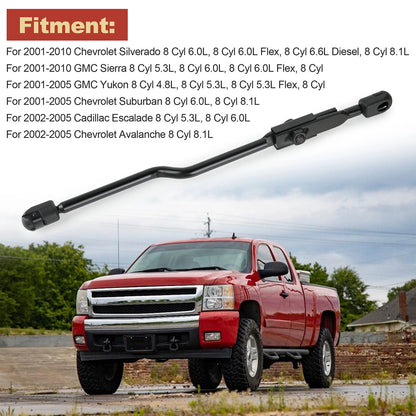

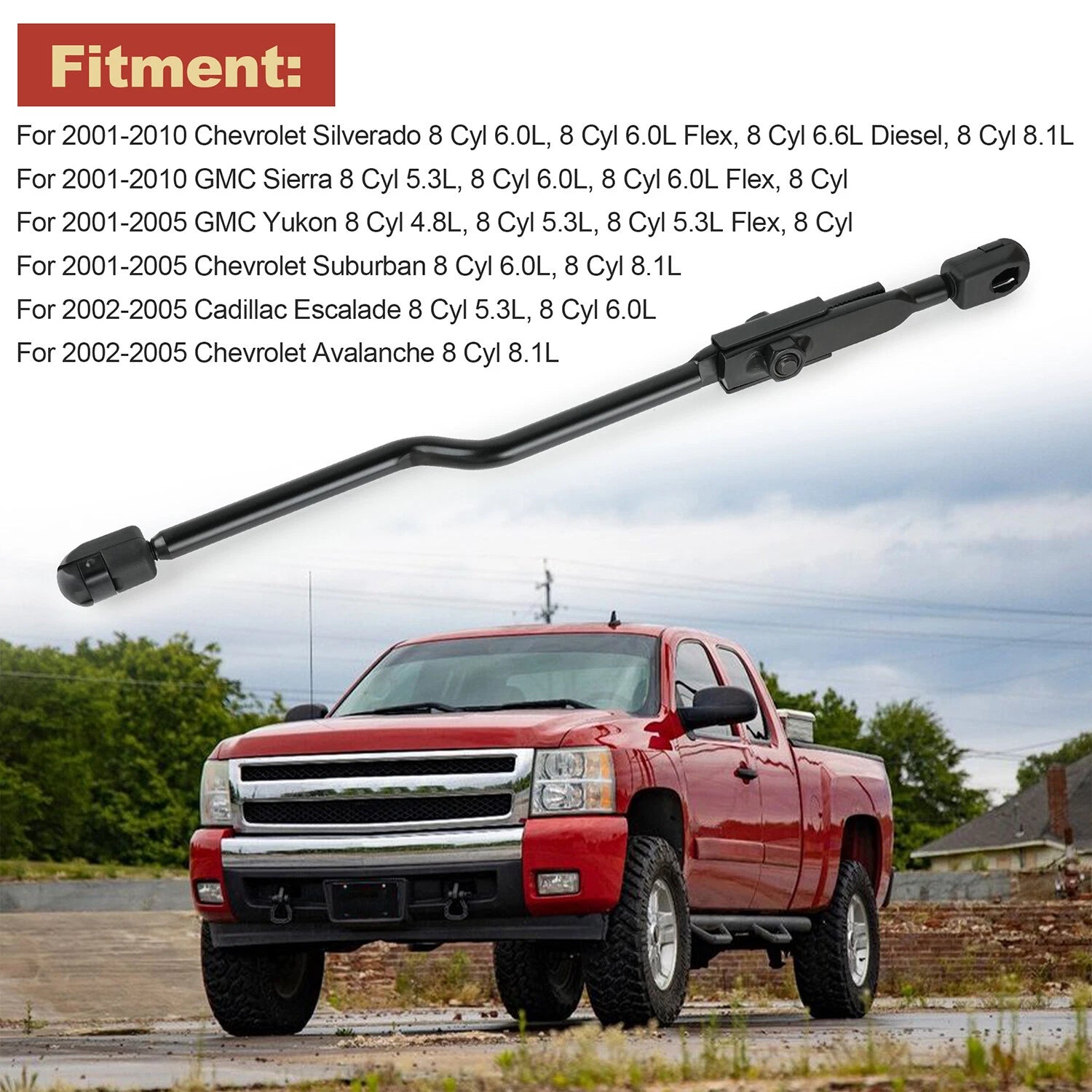

Silverado application check

The range below applies only to vehicles with the matching manual transfer case linkage. Model year and engine size alone do not confirm fit.

Model and years

Chevrolet Silverado, 2001-2010

Engine range

6.0L V8; 6.0L flex-fuel V8; 6.6L diesel V8; 8.1L V8

Required configuration

Manually shifted transfer case using a matching external control rod

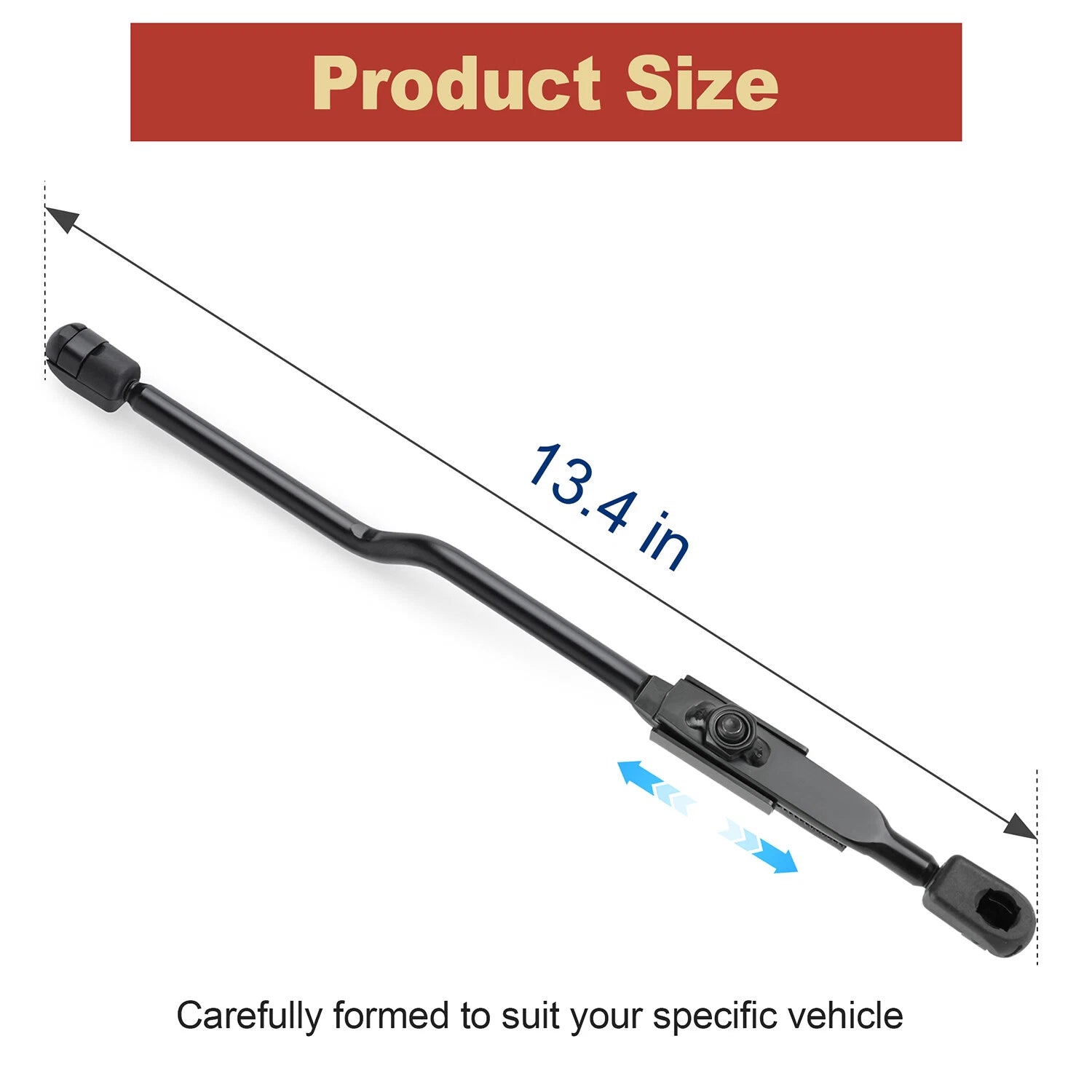

Confirm reference 15017377 against the vehicle's parts information, then compare the original rod's length, bends, end sockets and adjustment arrangement. Check the transfer case fitted to the vehicle, especially if it has been replaced. A floor-operated transfer case lever and dashboard push-button controls use different shift arrangements.

Use the service procedure for the vehicle's exact transfer case to install and adjust the linkage.
