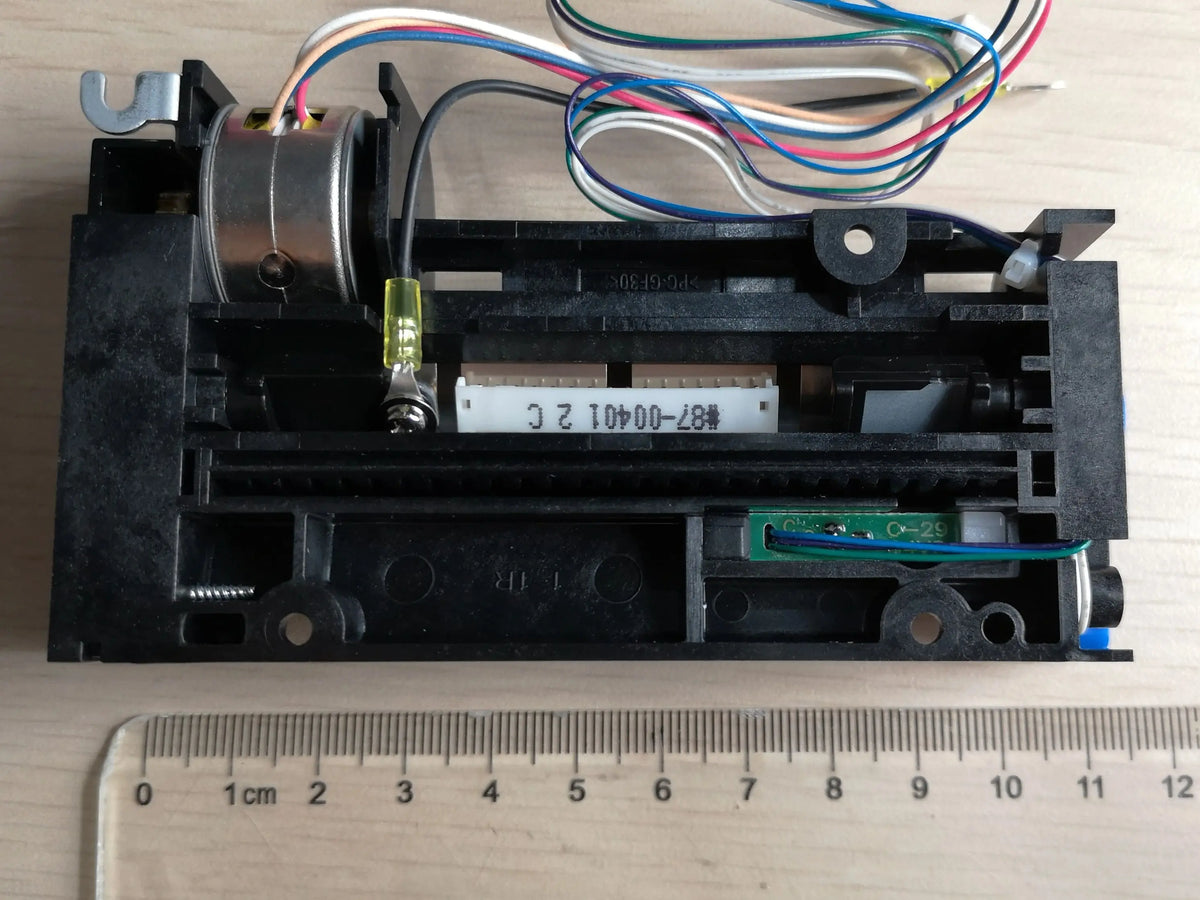

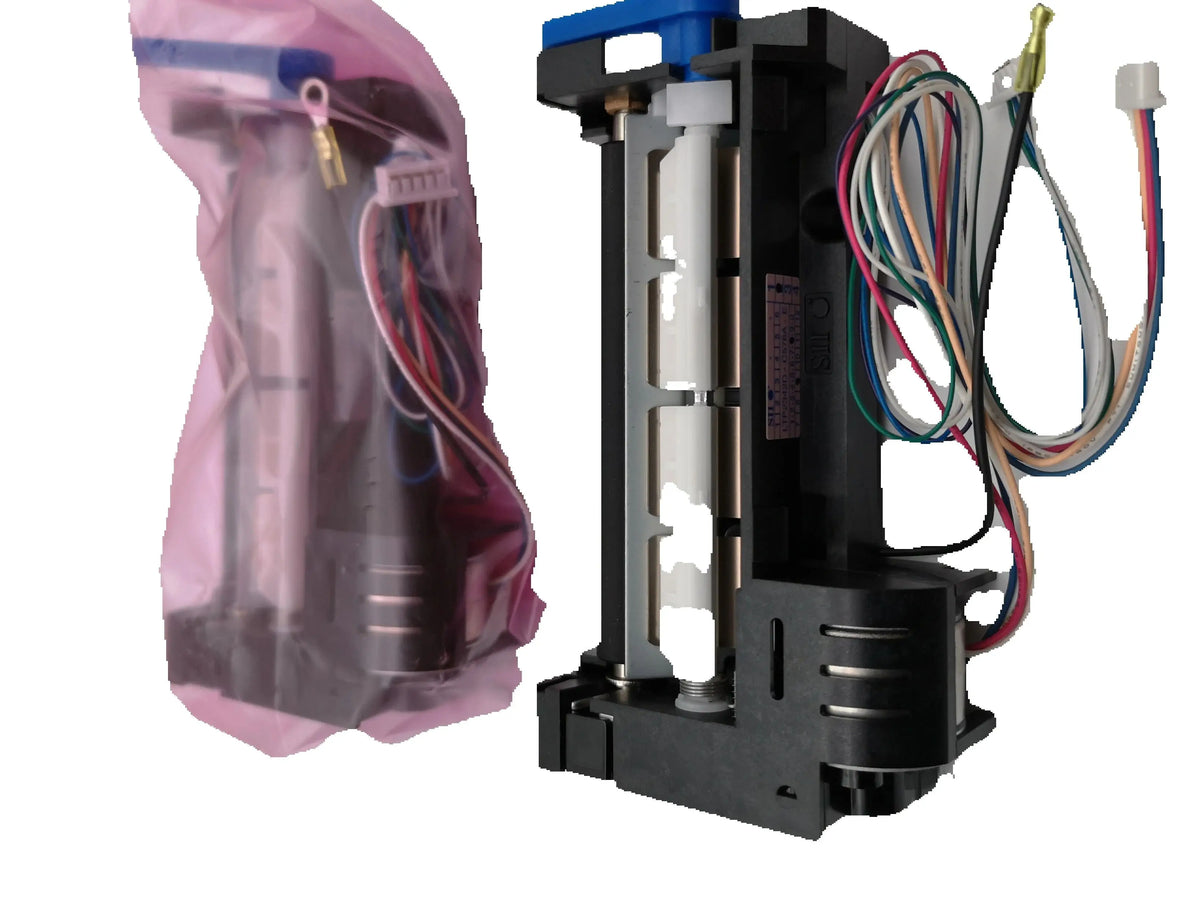

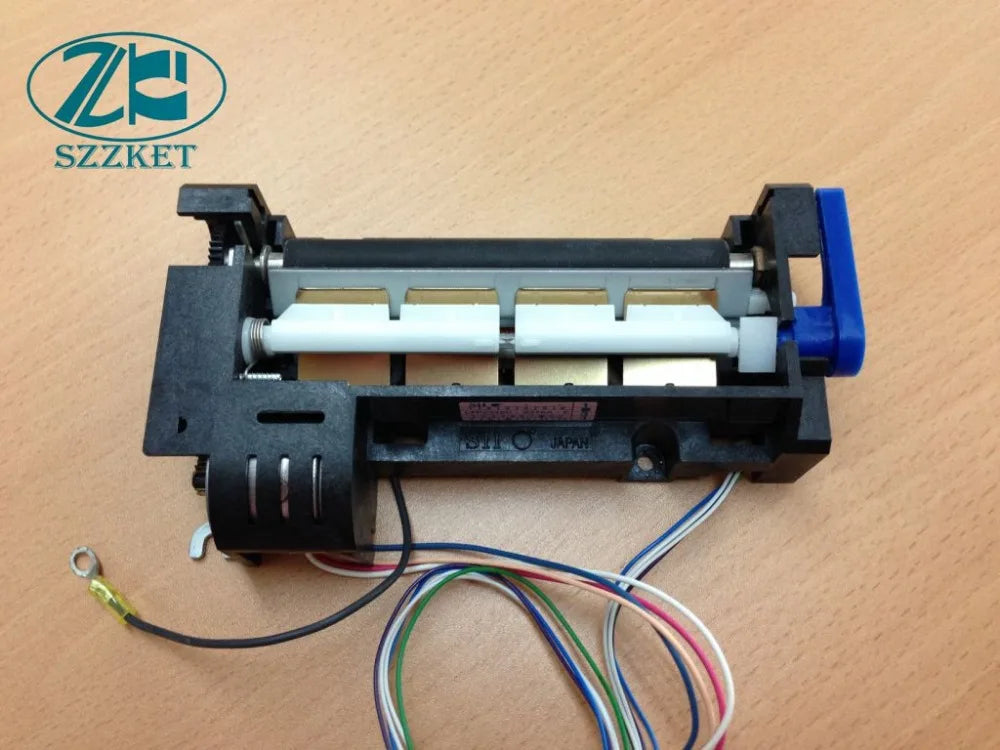

print head LTP2342C printer movement thermal printer accessories LTP2342C-S576A-E thermal

print head LTP2342C printer movement thermal printer accessories LTP2342C-S576A-E thermal

$204.75 USD
$204.75 USD $204.75 USD
Sale Sold out
Shipping calculated at checkout.

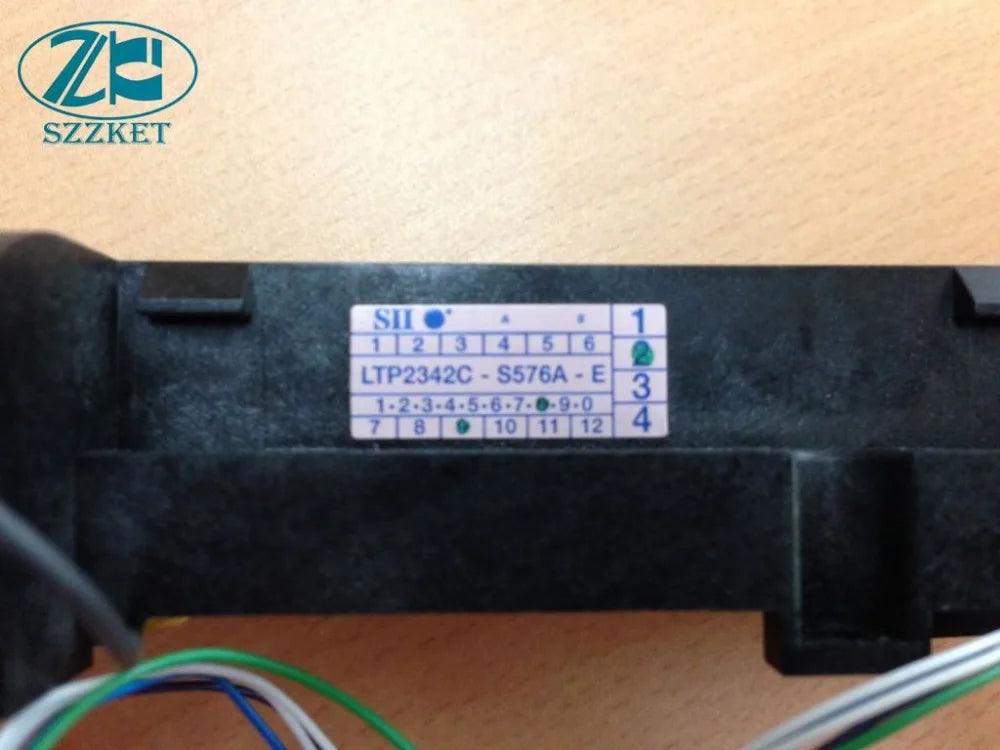

LTP2342C-S576A-E thermal print head for printer movement, model LTP2342C-S576A-E, 1 piece per pack, 0.500 kg weight, 15x33x4 cm package size, made in Mainland China.
  • Compatible with LTP2342C-S576A-E model This print head is specifically designed for the LTP2342C-S576A-E thermal printer model, ensuring perfect fit and reliable performance in daily printing operations.
  • High-quality thermal printing component Engineered for durability and precision, this print head LTP2342C delivers consistent print quality and stable operation in demanding environments.
  • Brand: SZZKET Manufactured by SZZKET, this accessory maintains high standards in material and production, offering a dependable replacement for original parts.
  • Single piece per pack Sold as 1 piece per pack, this print head is ideal for direct replacement, maintenance, or spare inventory without unnecessary bulk.
  • Compact and lightweight packaging The package measures 15 x 33 x 4 cm and weighs only 0.500 kg, making it easy to store, transport, and handle during shipping and setup.
  • Origin: Mainland China Produced in Mainland China, this print head meets standard manufacturing requirements and is suitable for commercial and industrial printing applications.
  • No high-concerned chemicals This product contains None high-concerned chemical substances, ensuring safe handling and compliance with general environmental and safety guidelines.


Brand new original , general situation is on the same day delivery, special circumstances delayed to next day.

Order to delivery on Monday at the weekend.

General area default hair DHL, the Middle East Express.

Express arrival time: most countries need about 10-20 working days to arrive.

* 4-10 days to the United States

* 6-13 days to Australia / Canada

* Europe's major cities 10 to 15 days

Sometimes for various reasons may be delayed, such as industrial strikes, bad weather, customs reasons or season, Christmas / New Year holidays and so on.

Less quantity can be taken directly, number can find customer negotiate price and delivery date.

If you need other delivery, please contact us.

Courier arrived at a specific time, you can query the Courier company.

If you don't see the model you want, please tell us your demand.

If there is any unclear, please contact customer service.

Looking forward to good cooperation with you.

LTP2000

Max printing speed:90mm/sec

Straight and curved path models available

Label printing

Supports thick paper : up to 135um﹡1

(Straight path model only)

Windows®Driver (XP/Vista)﹡In use with IF2302-02UK

Model

LTP2242

LTP2342

LTP2442

Printing

Method
Thermal line dot printing

Number of dots/line
432
576
832

Resolution(dots/mm)
8

Paper width(mm)
60
80
112

Printing width(mm)
54
72
104

Speed(mm/sec) max
90
75

Paper path
Straight / Curved

Detection

Head-updetection
By thermistor

Platen position detection
By mechanical switch

Out of paper detection
By photo interrupter

Power supply(V)

Operation voltage(Vdd)
4.75 to 5.25

Operation voltage(Vp)
21.6 to 26.4

Peak current(A)

Head
4.3(26.4V/288dots)

Motor
0.5

Service life

Pulse activation(pulse)
100 million

Abrasion resistance(km)
50 *1

Operating temperature(癈)
0 to 50

Dimensions(WxHxD mm)
85.2 x 61.4 x 27.0 *2
106.4 x 61.4 x 27.0*2
138.2 x 61.4 x 27.0 *2

Mass(g)
Approx.115
Approx.135
Approx.160















*1 Use recommended thermal papers*2Excluding protrusion
Windows ?/SUP> is the registered trademark of Microsoft Corporation (USA).

Interface
Model
IF2303-01B

IF2303-01BK

IF2302-02UK

CPU
PT230P01

Operating Voltage(V)
Vp:21.6 to 26.4, Vcc:4.5 to 5.5

Character matrix(H x W dots)
16 dots characters : 16 x 8, 16 x 16 24 dots characters : 24 x 12, 24 x 24

Character type

Optional font
Yes
Yes
Yes

Downloaded Character
Yes
Yes
Yes

User-defined Character
Yes
Yes
Yes

Extend Graphics Character set
Yes
Yes
Yes

Katakana Character set
No
Yes
Yes

JIS 1&2 level Kanji
No
Yes
Yes

Communication interface
Parallel, Serial (C-MOS)
USB

Dimensions(WxHxD mm)
90.0 x 100.0 x 22.0












CPU
Model
PT230P01

Package form
128pin QFP

Operating Voltage(V)
Vp:21.6 to 26.4, Vcc:4.5 to 5.5

Operating frequency(MHz)
18.43+/-0.5%

Configuration
C-MOS LSI

Communication interface
Parallel, Serial

Character type

Extended graphics character set
Other characters are available with CGs*3 or external RAM

Character matrix (H x W dots)
16 dots characters: 16*8, 16*16
24 dots characters: 24*12, 24*24

Dimensions(WxHxD mm)
22.0 x 16.0 x 3.1











*3 CG ROM: Japanese, Korean

Auto Cutter

Model

ACU2224

ACU2324

ACU2424

Cutting

Method
Slide type

Paper width(mm)
60
80
112

Paper thickness(祄)
65 to 125 *4

Cutting type
Full cut / Partial Cut (Leaving center point)

Operating time (sec/cycle) max
0.5

Cutting pitch(mm) min
10

Cut frequency (cut/min) max
30

Operating Voltage(V)

Motor
21.6 to 26.4

Detector(control switch)
4.75 to 5.25

Starting Current (A)
1.2

Life(cut)
300,000

Dimensions(WxHxD mm)
79.0 x 66.5 x 16.5
100.0 x 66.5 x 17.0
126.0 x 69.3 x 17.5

Mass(g)
Approx.120
Approx.200
Approx.260












*4 Use recommended thermal papers.
