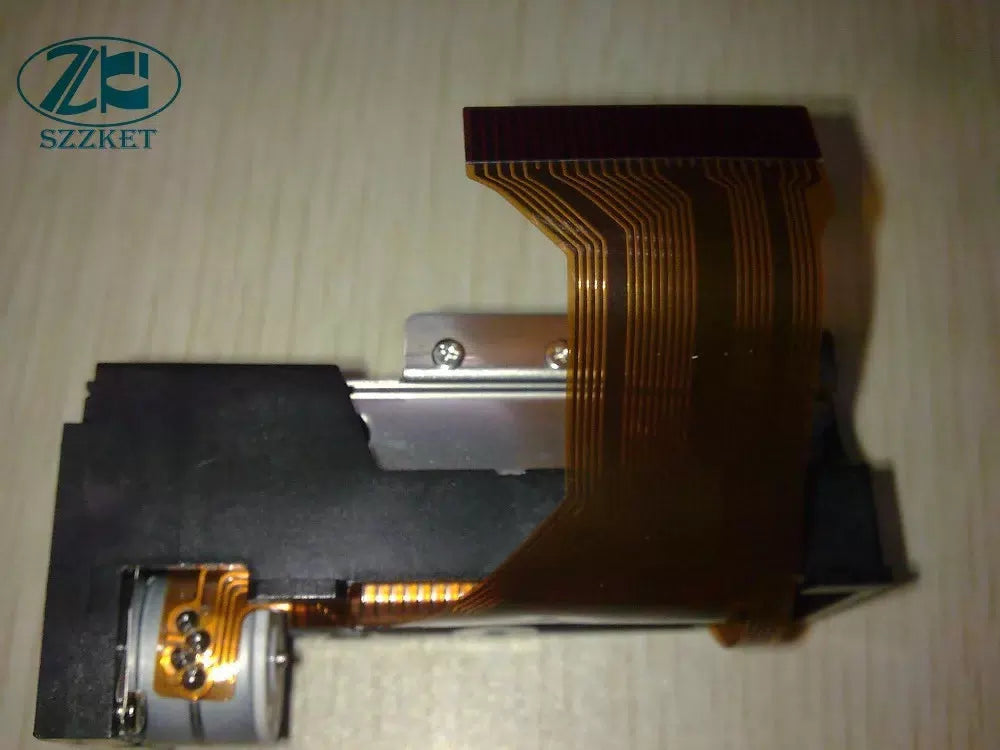

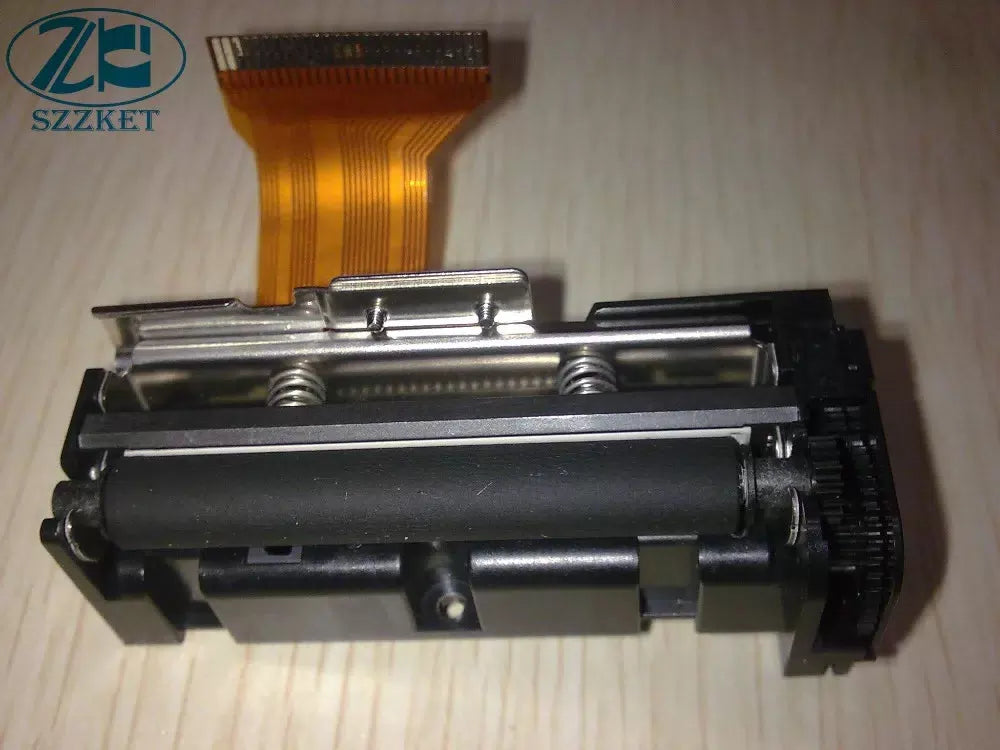

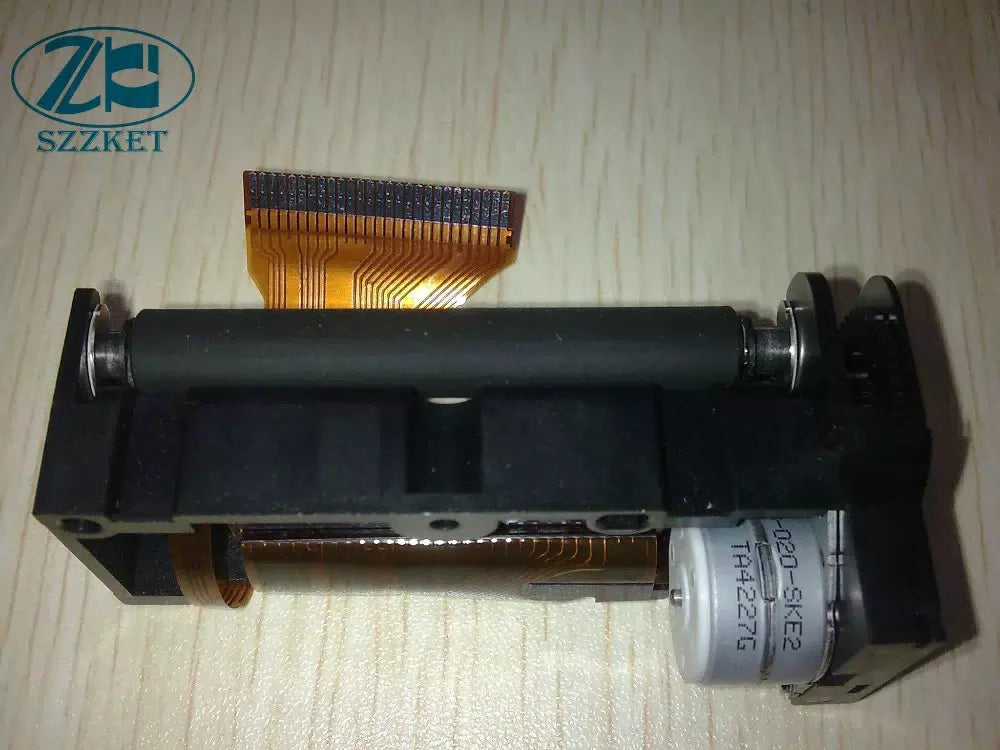

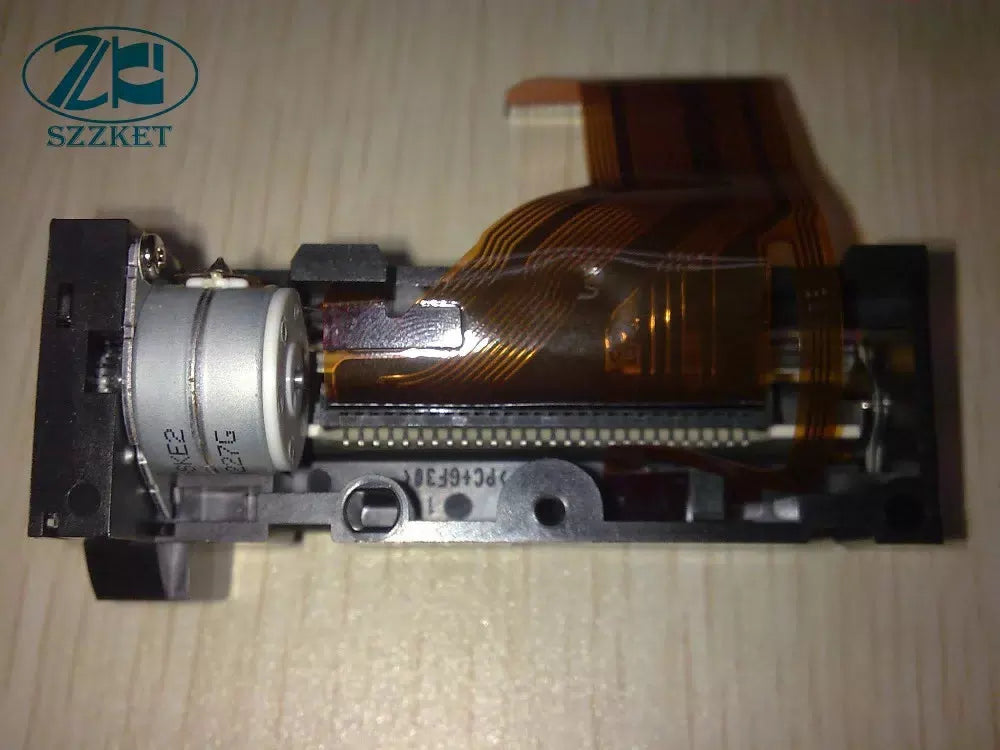

Original thermal printhead LTPA245A-384-E print head paper width Open in the middle LTPA245R-384,LTPA245A,LTPA245,LTPA245P-384-E

Original thermal printhead LTPA245A-384-E print head paper width Open in the middle LTPA245R-384,LTPA245A,LTPA245,LTPA245P-384-E

$49.63 USD
$49.63 USD $49.63 USD
Sale Sold out
Shipping calculated at checkout.
Buy Original thermal printhead LTPA245A-384-E print head paper width Open in the middle LTPA245R-384,LTPA245A,LTPA245,LTPA245P-384-E at Aliexpress for . Find more 7, 200003341 and products. Enjoy ✓Free Shipping Worldwide! ✓Limited Time Sale ✓Easy Return.


LTPA245A/R/P/H


Max printing speed:90mm/sec

Compact and light-weiibht

Platem latch function

Printing

Method
Thermal line dot printing

Number of dots/line
384

Resolution(dots/mm)
8

Paper width(mm)
58

Printing width(mm)
48

Speed(mm/sec) max
90

Paper path
Curved

Detection

Head temperature
By thermistor

Out of Paper detection
By photo interrupter

Power Supply(V)

Operation voltage(Vdd)
2.7 to 3.6/4.75 to 5.25

Operation voltage(Vp)
4.5 to 8.5

Peak current(A)

Head
2.6 (8.5V / 64dots)

Motor
0.6

Service Life

Pulse activation(pulse)
100million

Abrasion resistance(km)
50 *1

Operating temperature(°C)
0 to 50

Dimensions(WxHxD mm)
69.2 x 28.3 x 31.7*2

Mass(g)
Approx.42
Model

LTPA245















*1 Use recommended thermal papers*2Excluding protrusion
