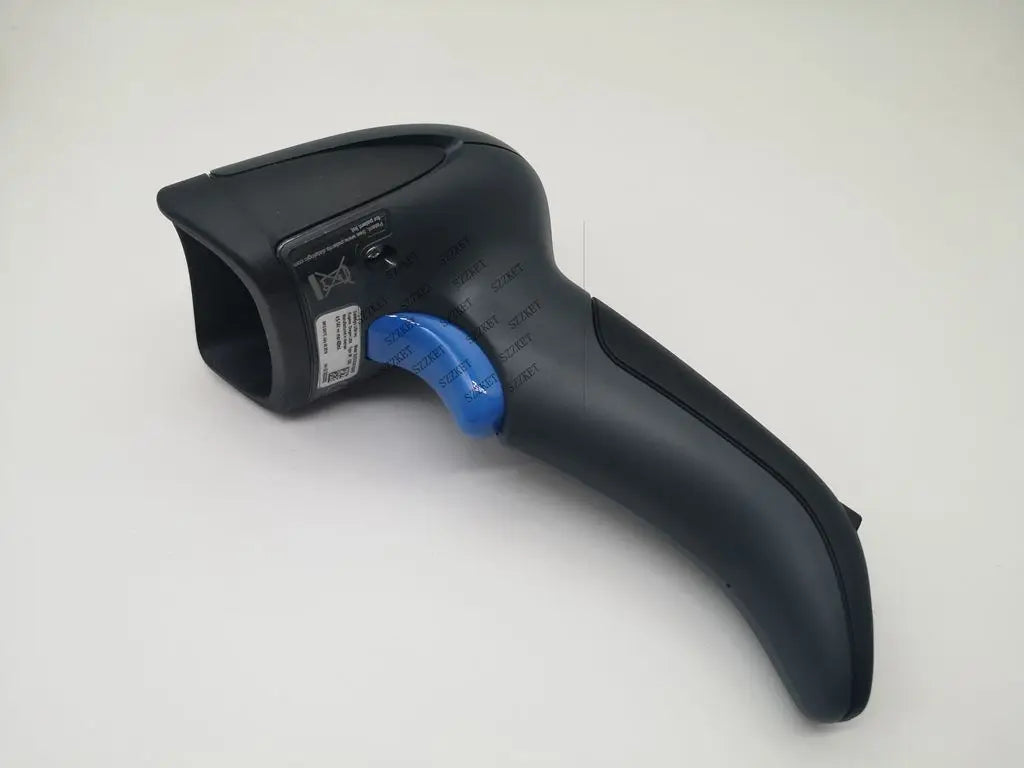

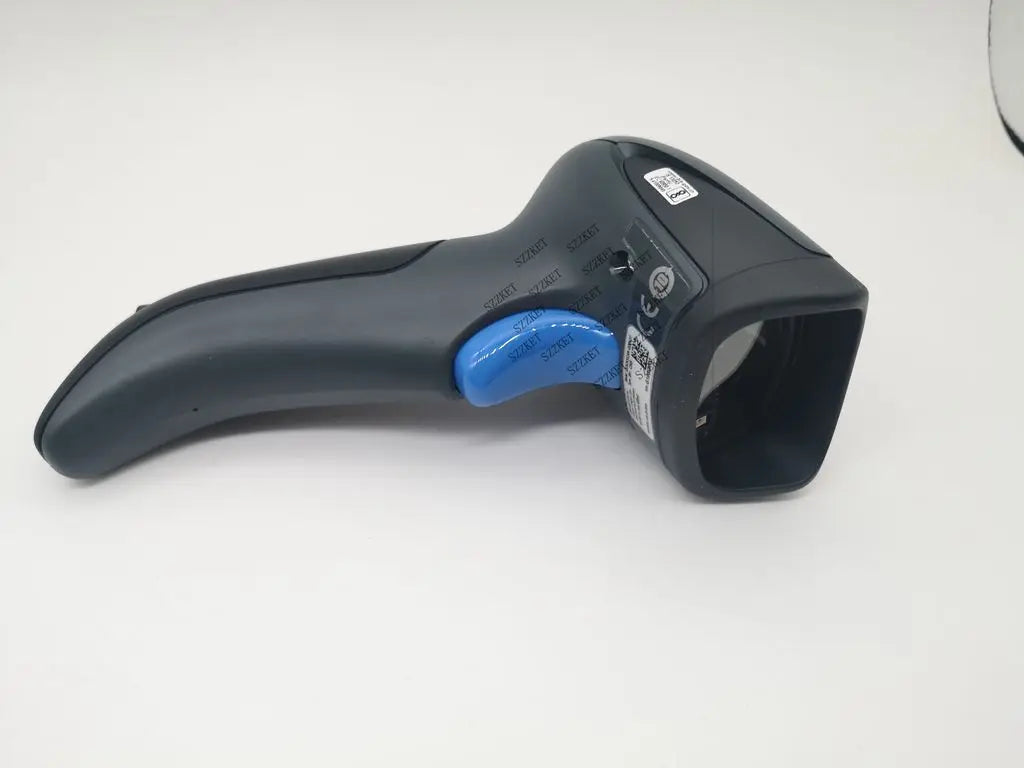

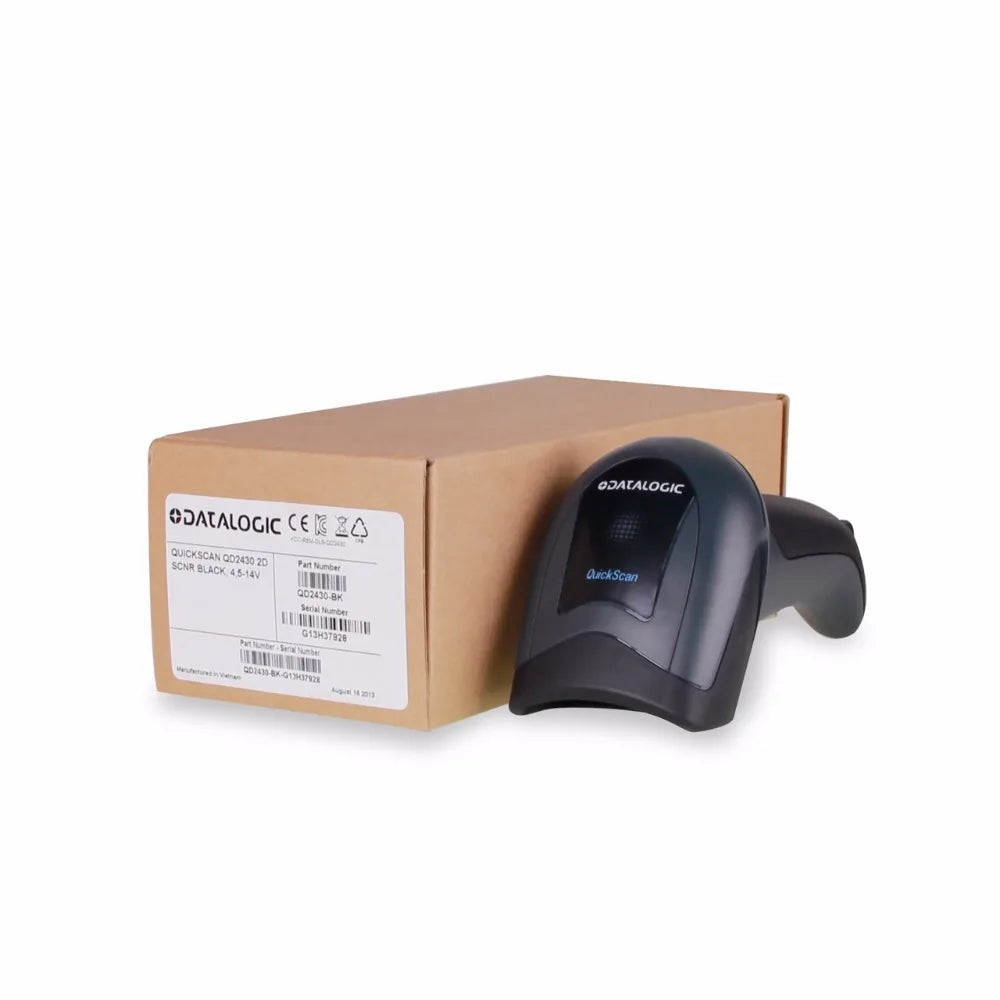

One-dimensional two-dimensional bar code scanner QD2430, wired scanner, screen scanner for Datalogic QD-2430

1) excellent read sensitivity

2) omni-directional read performance

3) The use of LED-based aiming system to reduce visual stress

4) Datalogic "Green Dot" patented technology that provides effective read feedback

5) advanced mobile sensing optics

6) support host download



Specifications for the Datalogic QD2430 2D Scanner

Decoding ability

One-dimensional code / linear code: GS1 DataBar ™ linear codes are automatically distinguished and decoded for all standard 1D codes.

Two-dimensional code: Aztec Code; Aztec Mesas; Data Matrix; MaxiCode; Micro QR Code;

GS1 DataBar Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A / E Composites

Postal code: KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC); China Post Code; Canada Postal Code; Japan Post Code; Australia Postal Code; United Kingdom Postal Code; Korea Post Code

Power parameters

Current: Operating Status (Nominal): 140 mA @ 5 VDC; Standby / Idle (nominal): 50 mA @ 5 VDC

Input Voltage: 4.5 - 14 VDC +/- 10%

surroundings

ESD Electrostatic Protection (Air Discharge): 16 kV

Vibration resistance: Can withstand multiple drops from 1.5 meters / 5 feet of concrete impact

Temperature: Storage / Transportation: -40 to 70 ° C / -40 to 158 ° F; Operating: 0 to 50 ° C / 32 to 122 ° F

Humidity (non-condensing): 0 - 95%

Ambient light: 86,000 lux

Waterproof and dustproof Sealing level: IP42

interface

Interface: Composite keyboard / OEM (IBM) USB interface / RS-232 serial port / USB interface

Physical parameters

Available colors: white; black

Size: 16.3 x 9.1 x 4.1 cm / 6.4 x 3.6 x 1.6 in

Weight: 145.0 g / 5.1 oz

Scanning performance

Light source: Illumination: red LED 610-650 nm; aiming: 2 blue LEDs

Resolution (max): 0.102 mm / 4 mils (Linear Codes)

Image Sensor: Wide VGA: 752 x 480 pixels

Bar code printing contrast (minimum): 25%

Moving tolerance: 25 IPS

Successful read indication: buzzer (adjustable pitch); Datalogic 'green dot' successfully read feedback; read aiming LED

Scanning angle: Curl: +/- 360 °; Slope: +/- 65 °; Distortion (deviation): +/- 60 °

Scanning range

Standard Depth of Field: The minimum depth of field is determined by the barcode length and scan angle. Depending on print resolution, contrast and ambient light.

Code 39: 5 mils: 0.5 to 15.0 cm / 0.2 to 5.9 in

Data Matrix: 10 mils: 1.0 to 13.0 cm / 0.4 to 5.1 in

EAN / UPCA: 13 mils: 0.5 to 35.0 cm / 0.2 to 13.8 in

PDF417: 6.6 mils: 1.0 to 13.0 cm / 0.4 to 5.1 in
