1014729 first-speed resistor coil

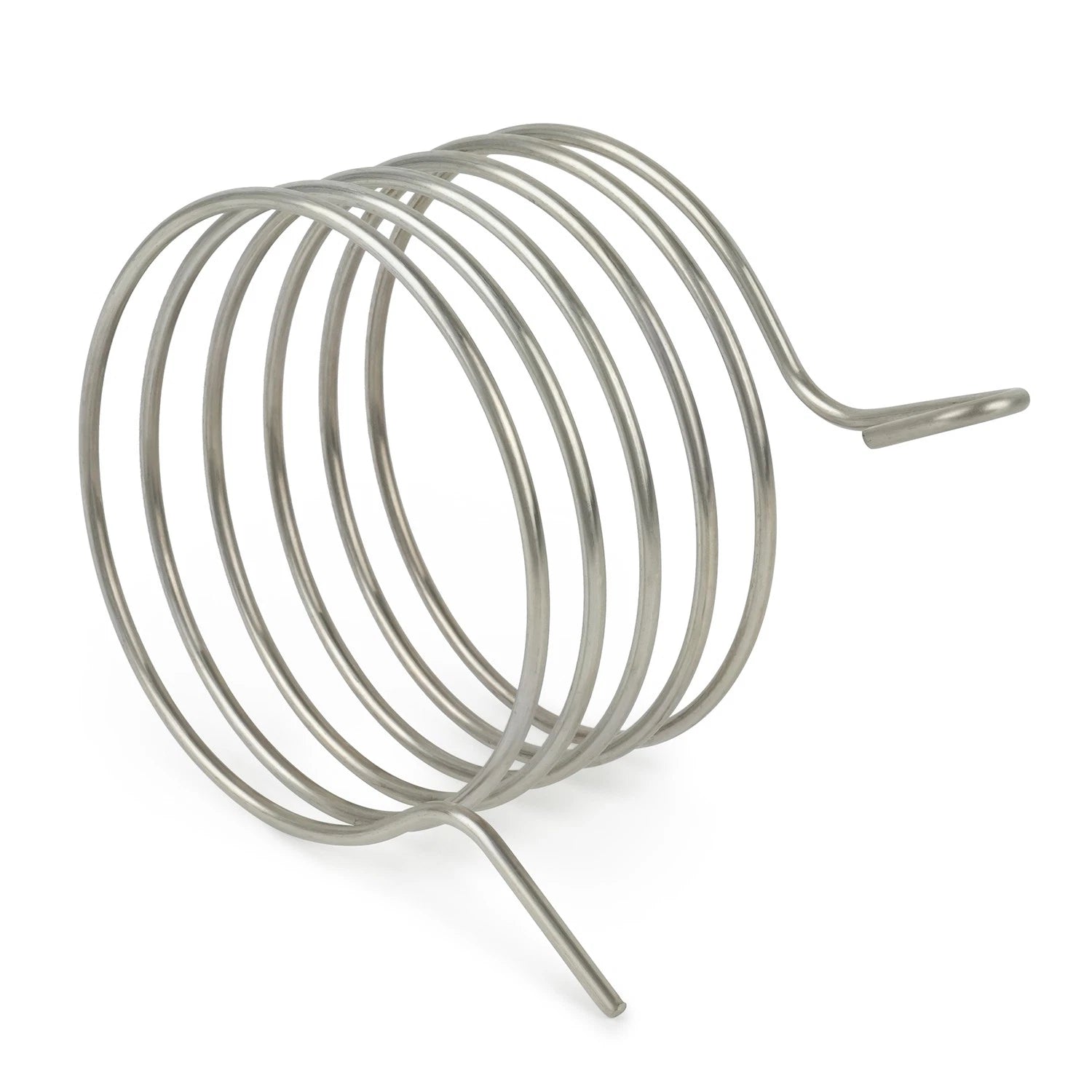

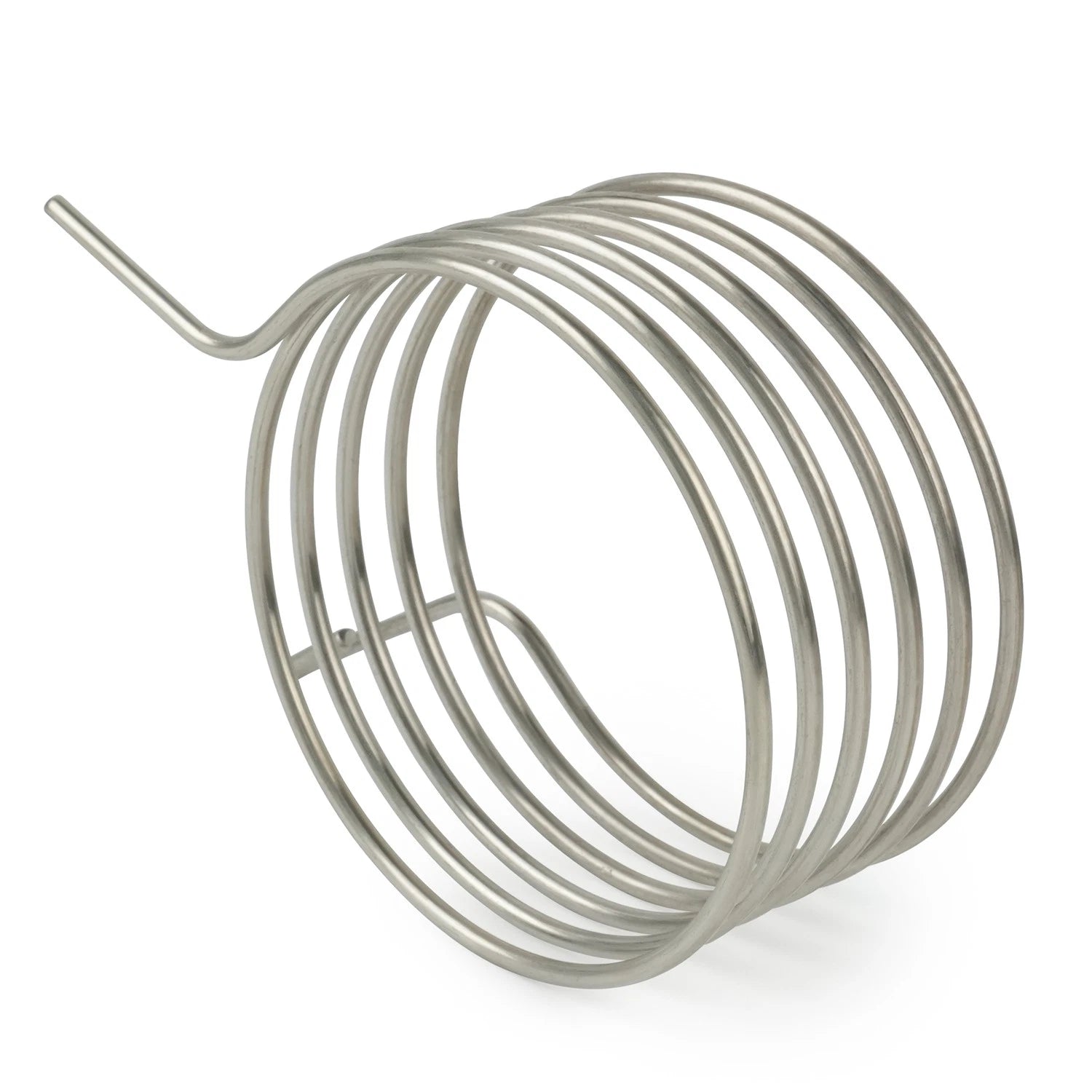

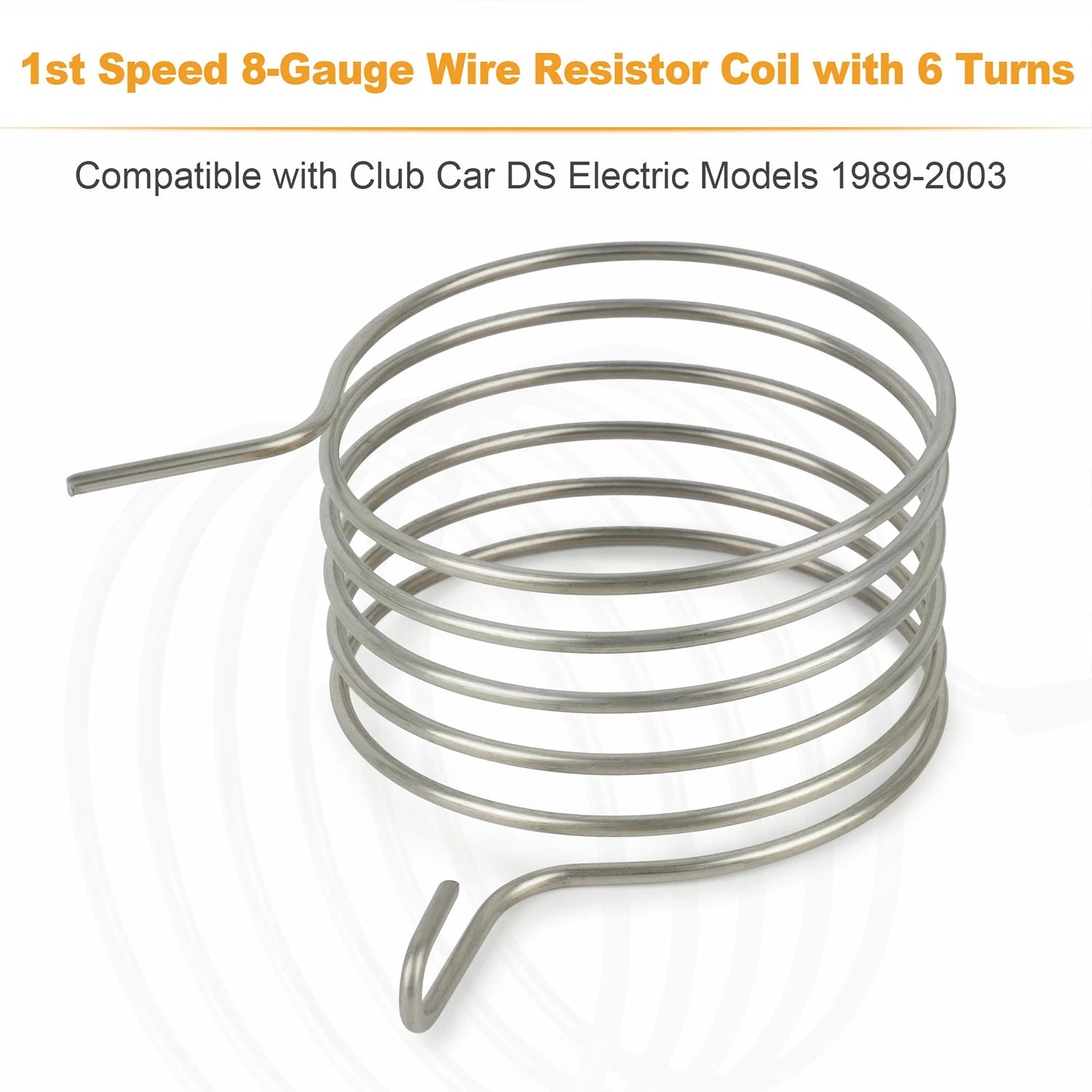

This replacement coil is listed for the first-speed position on 1989-2003 Club Car DS electric golf carts with V-Glide and a five-resistor arrangement. It has six turns of 8-gauge wire, with a straight projecting tail at one end and a return-bent hook at the other.
Coil and system details
- Part reference
- 1014729
- Additional references
- RES5775 and N5775
- Speed position
- First speed
- Listed vehicle
- Club Car DS electric golf carts, 1989-2003
- Control arrangement
- V-Glide with five resistors
- Wire gauge
- 8 gauge
- Coil turns
- 6
- Pictured component
- One bare resistor coil
Identify the first-speed coil
The six turns describe the winding count of this coil. The 8-gauge designation describes its wire size; neither number is a resistance value or power rating. Resistance in ohms, rated wattage and coil dimensions are not specified for this replacement.

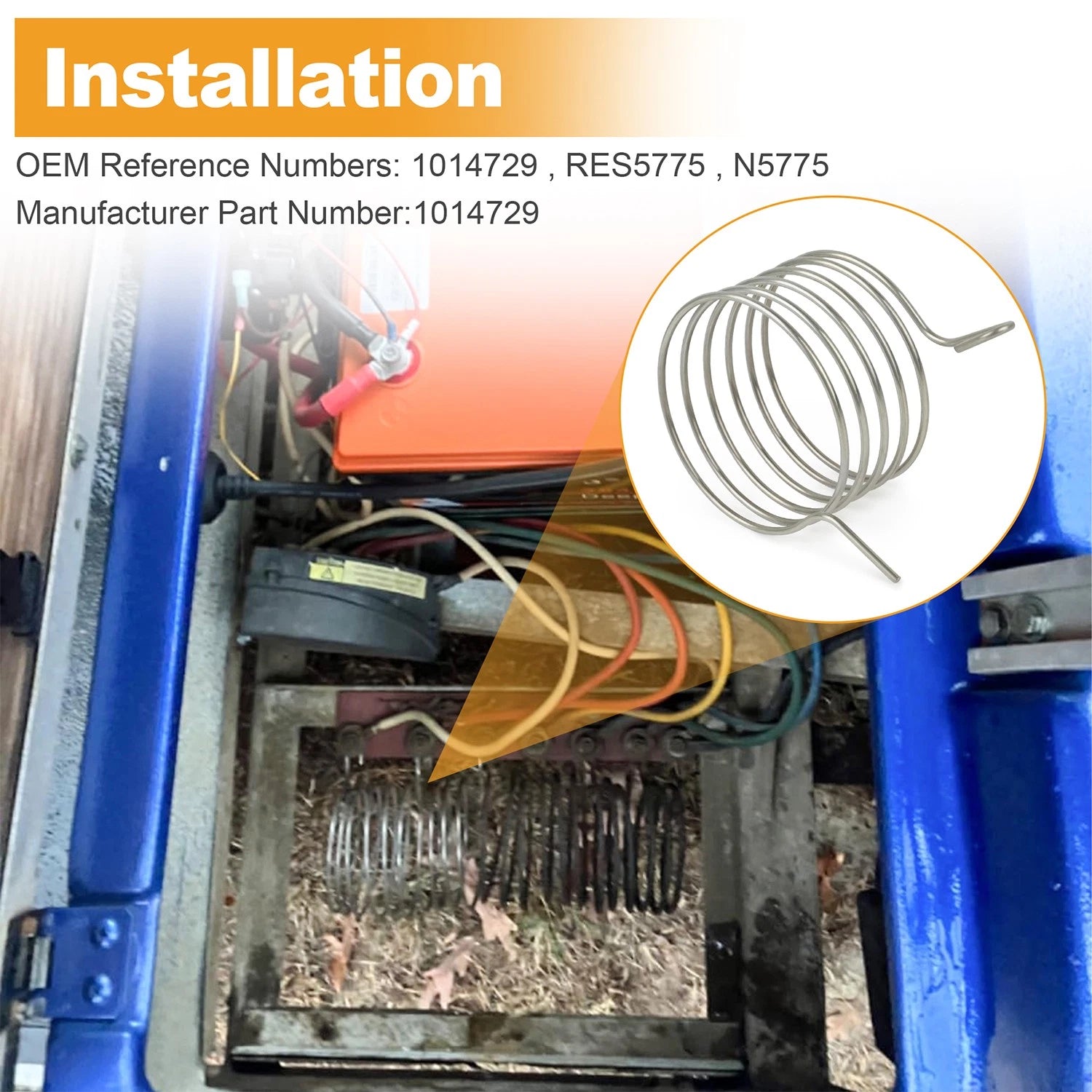

Match reference 1014729 to the first-speed position in your cart's parts diagram. Check the V-Glide and resistor arrangement as well as the model year, especially if the cart's speed-control system has been changed. The installation image shows a resistor bank for context; this item is the individual coil.
Compare the ends and mounting

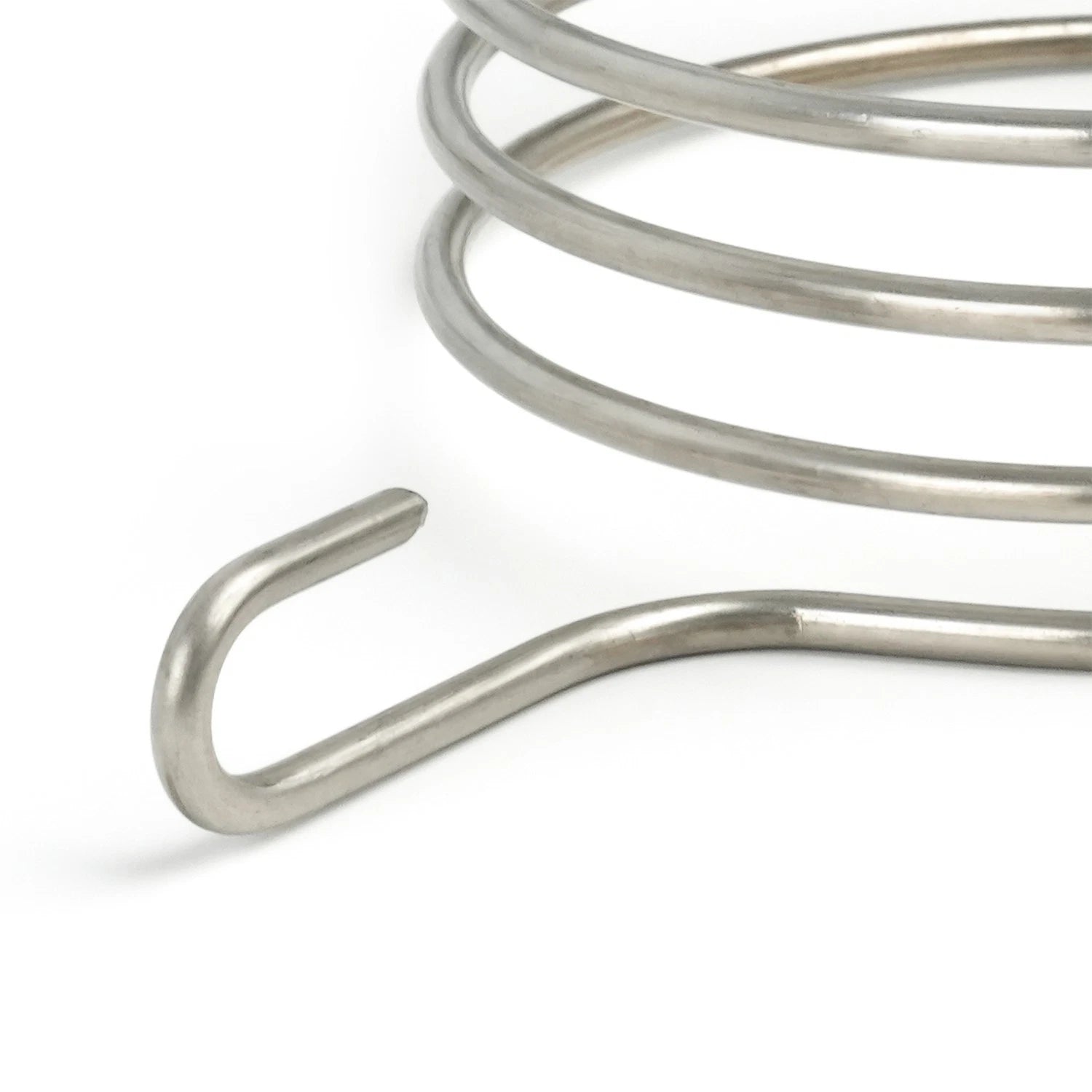

Check the coil's diameter, height and end orientation against the part being replaced. The straight tail and bent hook need to correspond to the connections in your assembly. A mounting board, stand-offs, connecting wires and fasteners are not identified as included.
Use your cart's serial number to obtain the correct parts and service information through Club Car's manual service. Have the coil and its connections checked under the service procedure for that control system.
