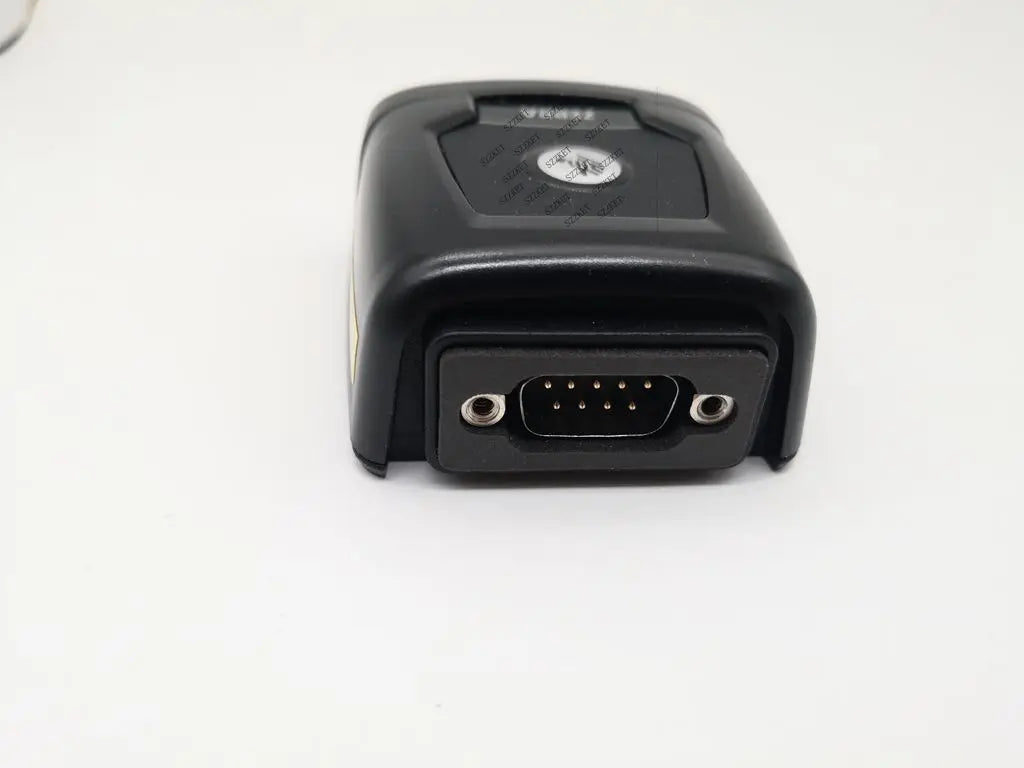

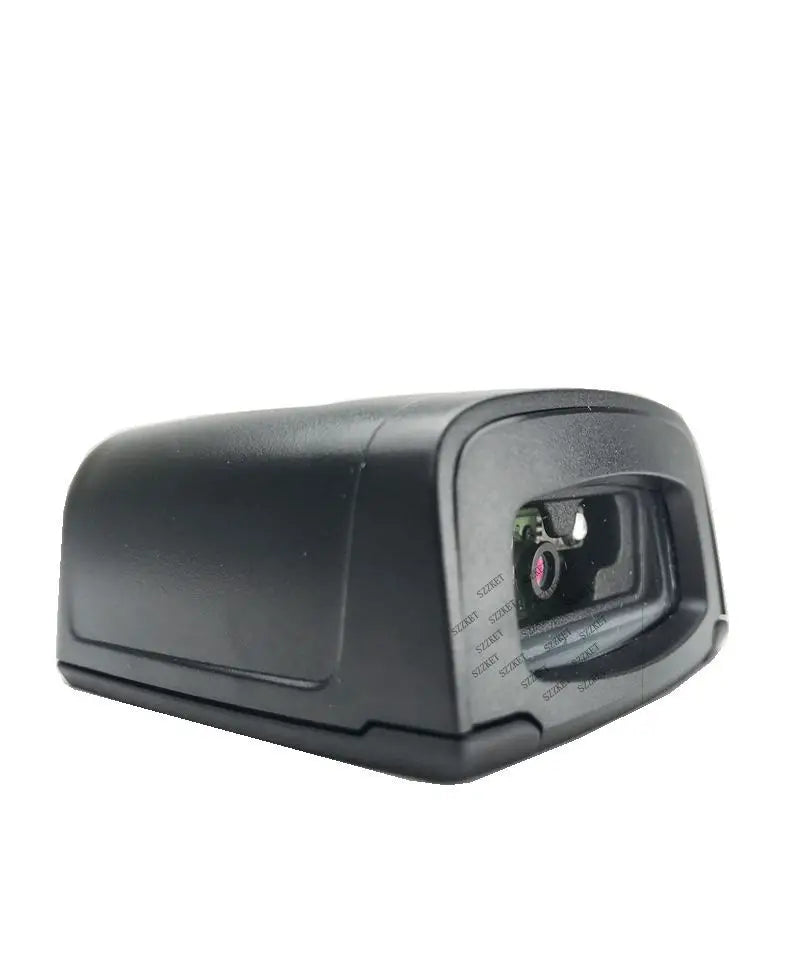

DS457 for SYMBOL scanner code New original for DS457-SR 20009 DS457 Fixed Mount Imager

Physical parameters:

Scanner volume (length x width x height): 5.84 x 6.2 x 2.92 cm

Weight: 111 g

With rope: Yes

Hands-free function: Yes

Supported interfaces: RS-232, USB

Decoding capability: 1D, 2D barcodes and direct component marking

Performance parameter

Sensor resolution: 752 (horizontal) x480 (vertical) gray scale

Field of view: 38.4 ° horizontal, 24.9 ° vertical

Aiming element: 655 ± 10 nanometers (VLD)

Lighting element: 655 ± 5nm (LED)

Minimum printing contrast: minimum 25% absolute black / volume reflectance

Barcode decoding capability

One-dimensional:

Two-dimensional:

Use environment:

Operating temperature: -4 ° to 122 ° F / -20 ° to 50 ° C (Note: laser sight is disabled above 113 ° F / 45 ° C)

Storage temperature: -40 ° to 158 ° F / -40 ° to 70 ° C

Humidity: Working relative humidity 95%, 50 ° C non-condensing; storage relative humidity 85%, 70 ° C non-condensing

Environmental seal: IP54

Drop specifications: can withstand multiple impacts from a 30-inch / 76-cm height to the concrete floor

Ambient light: pitch black to 9000 foot candles (96, 900 lux)

Programming parameters: power mode, trigger mode, buzzer ringtone, call back time, focus control, camera control, image control, advanced data formatting, file collection, signature collection

Image file format: BMP, TIFF, JPG

Regulations:

Electrical safety: ETL, VDE, CETL, EN60950, Ctick, VCCl

Laser classification: suitable for CDRH class II / IEC8251 class equipment

EMI electromagnetic interference / RFI radio frequency interference: FCC Part 15 Class B, ICES 003 Class B. CISPR22 Class B
