Extended studs for the Chevy S10

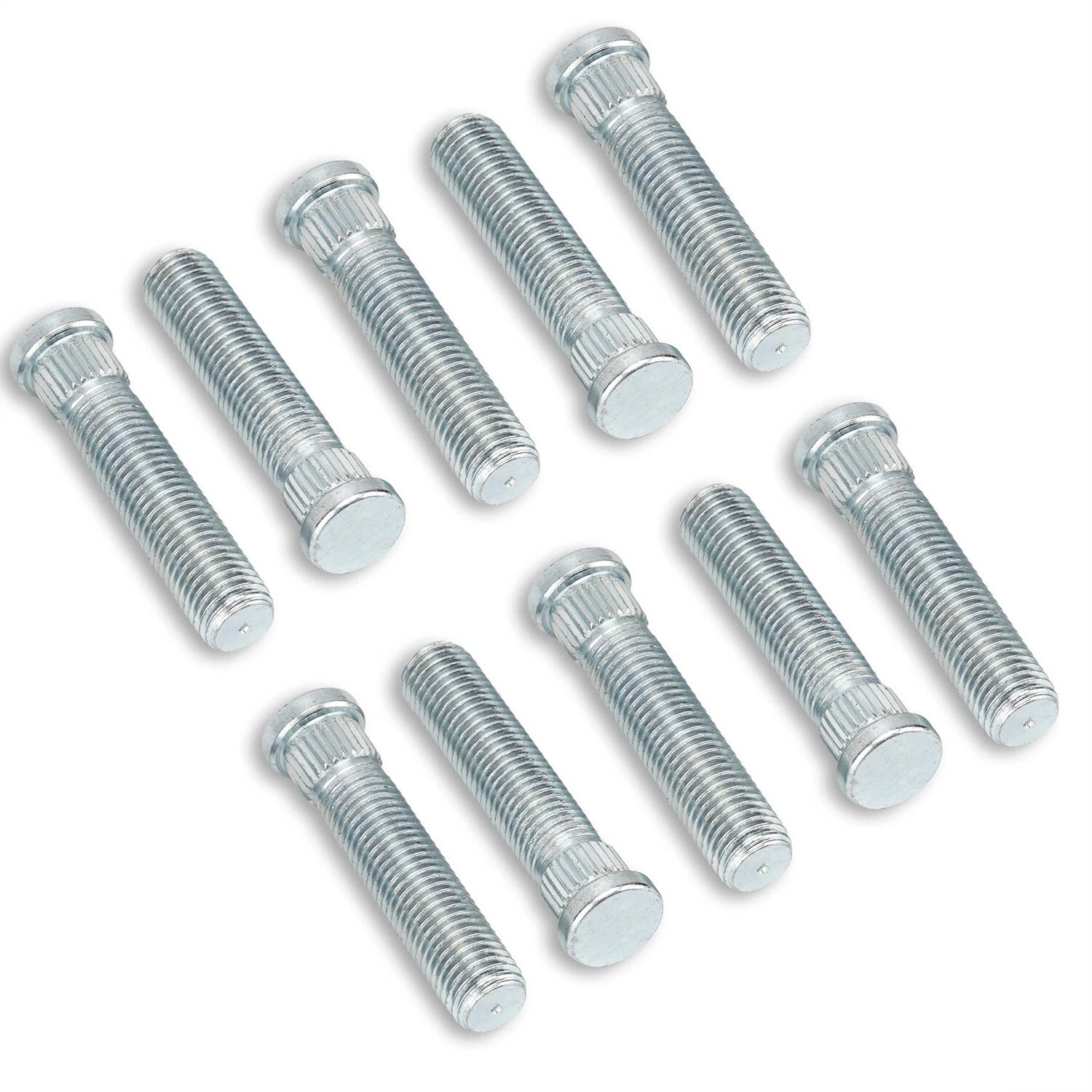

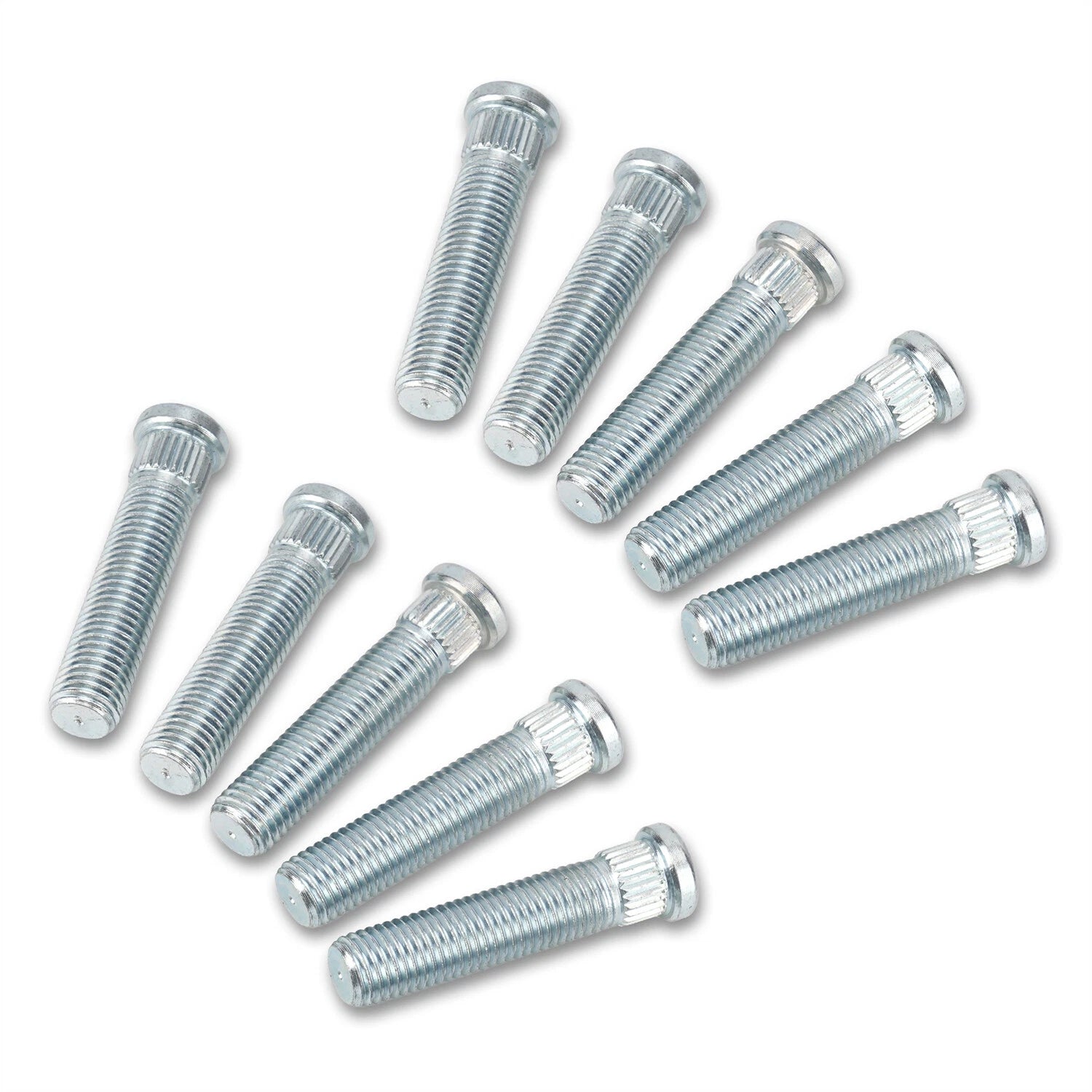

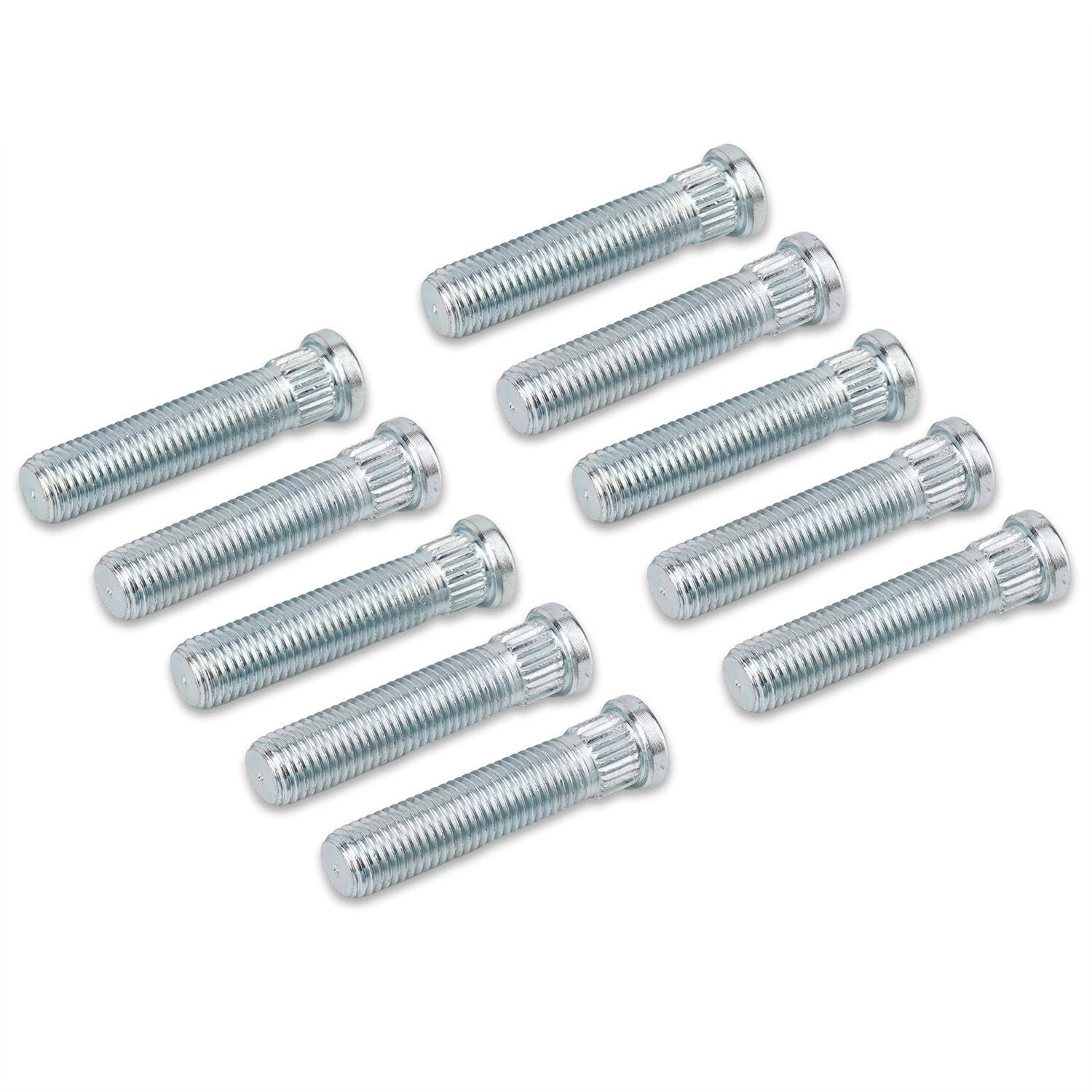

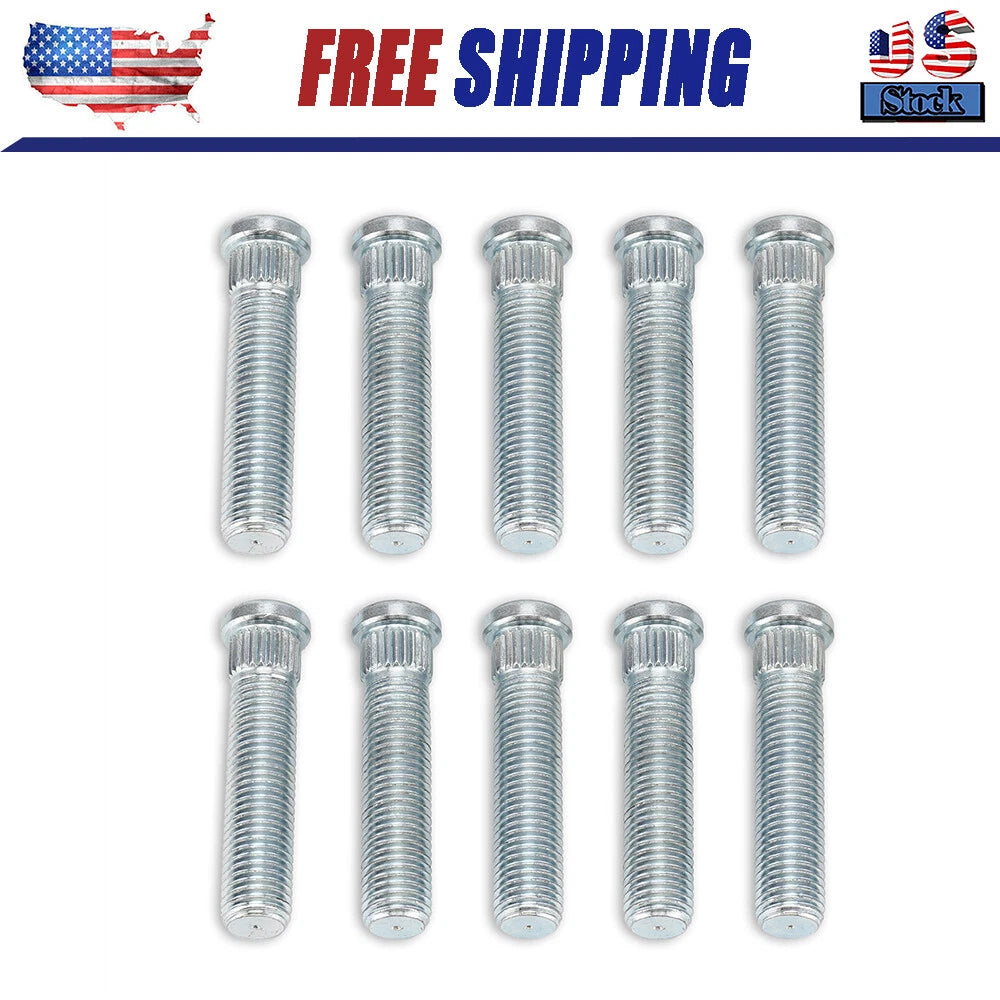

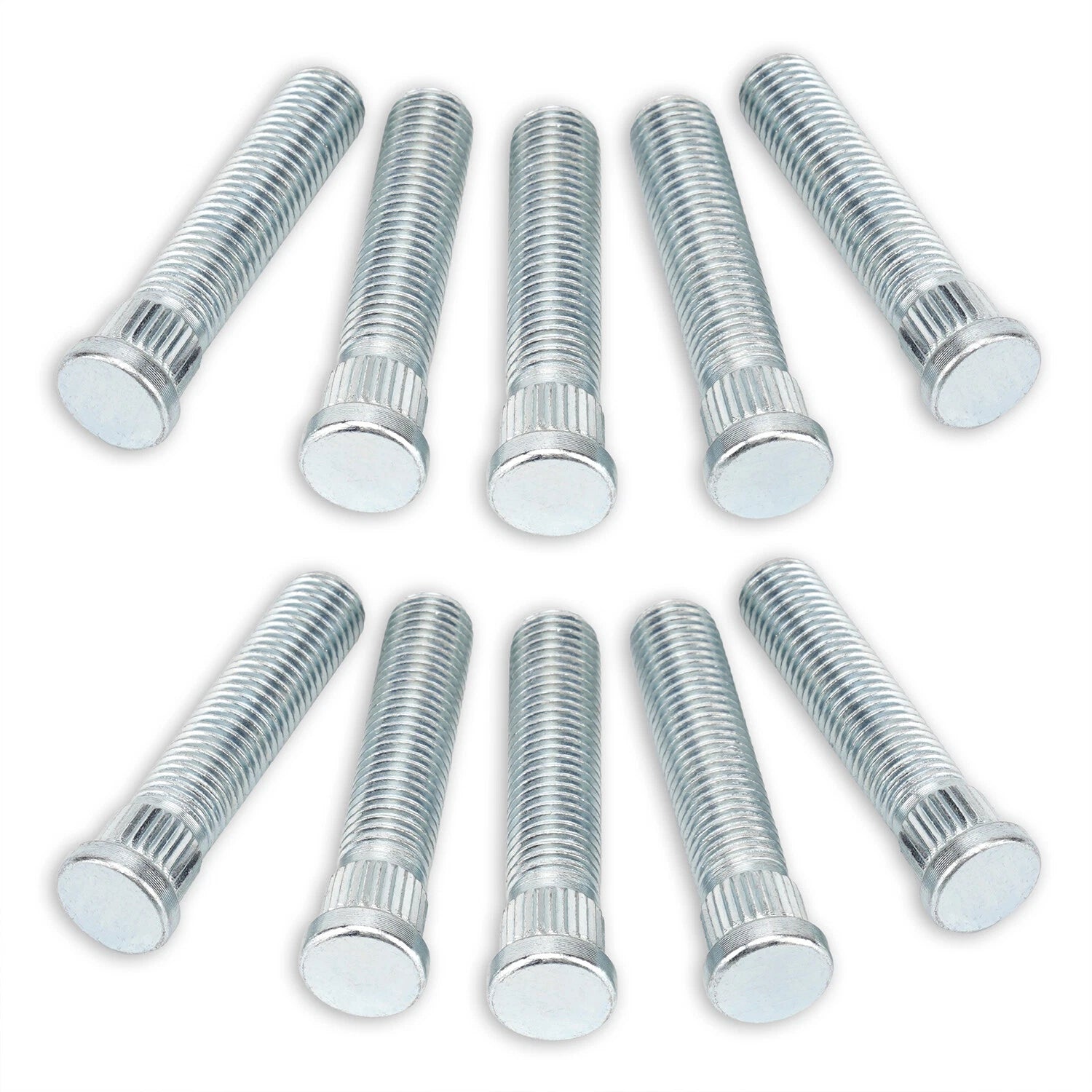

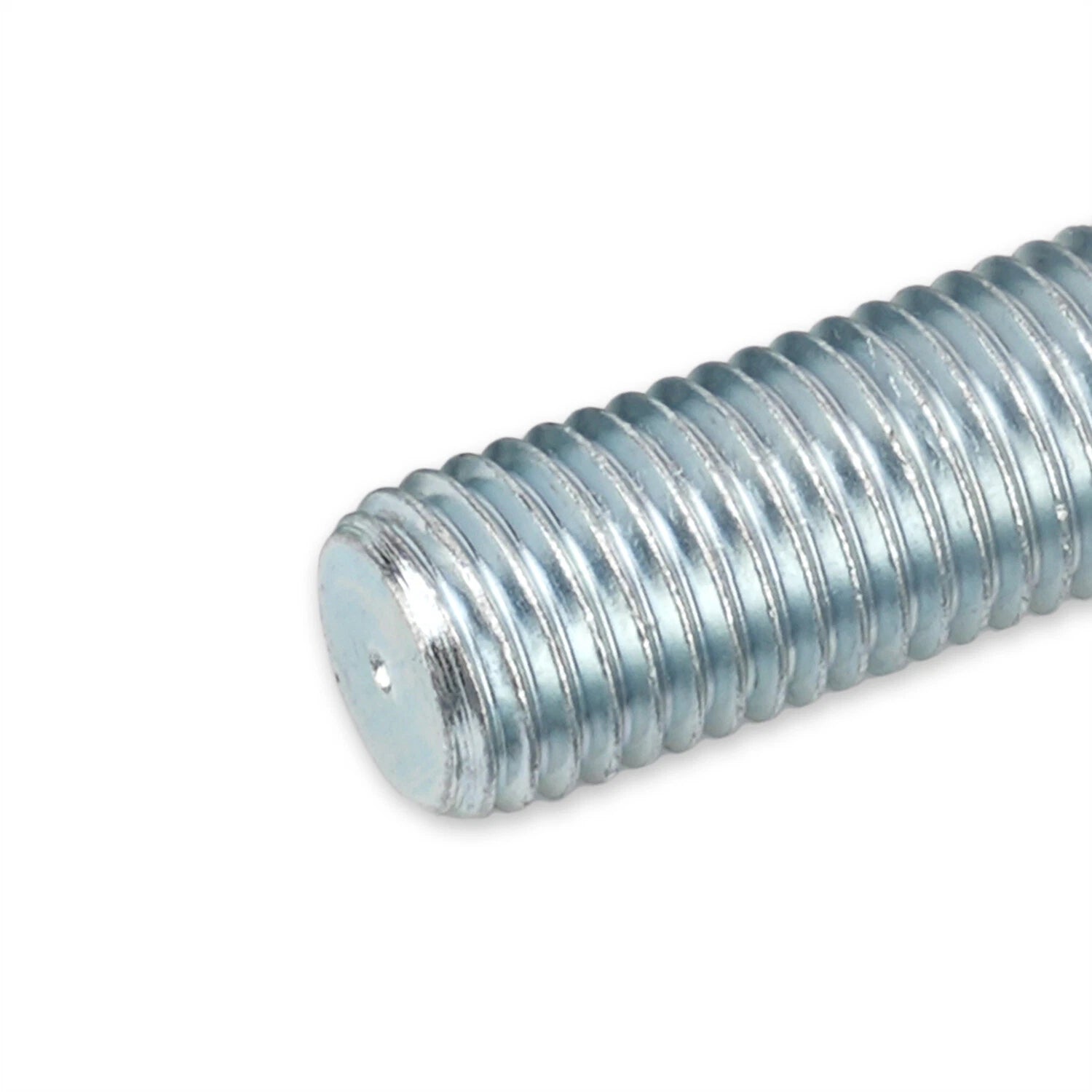

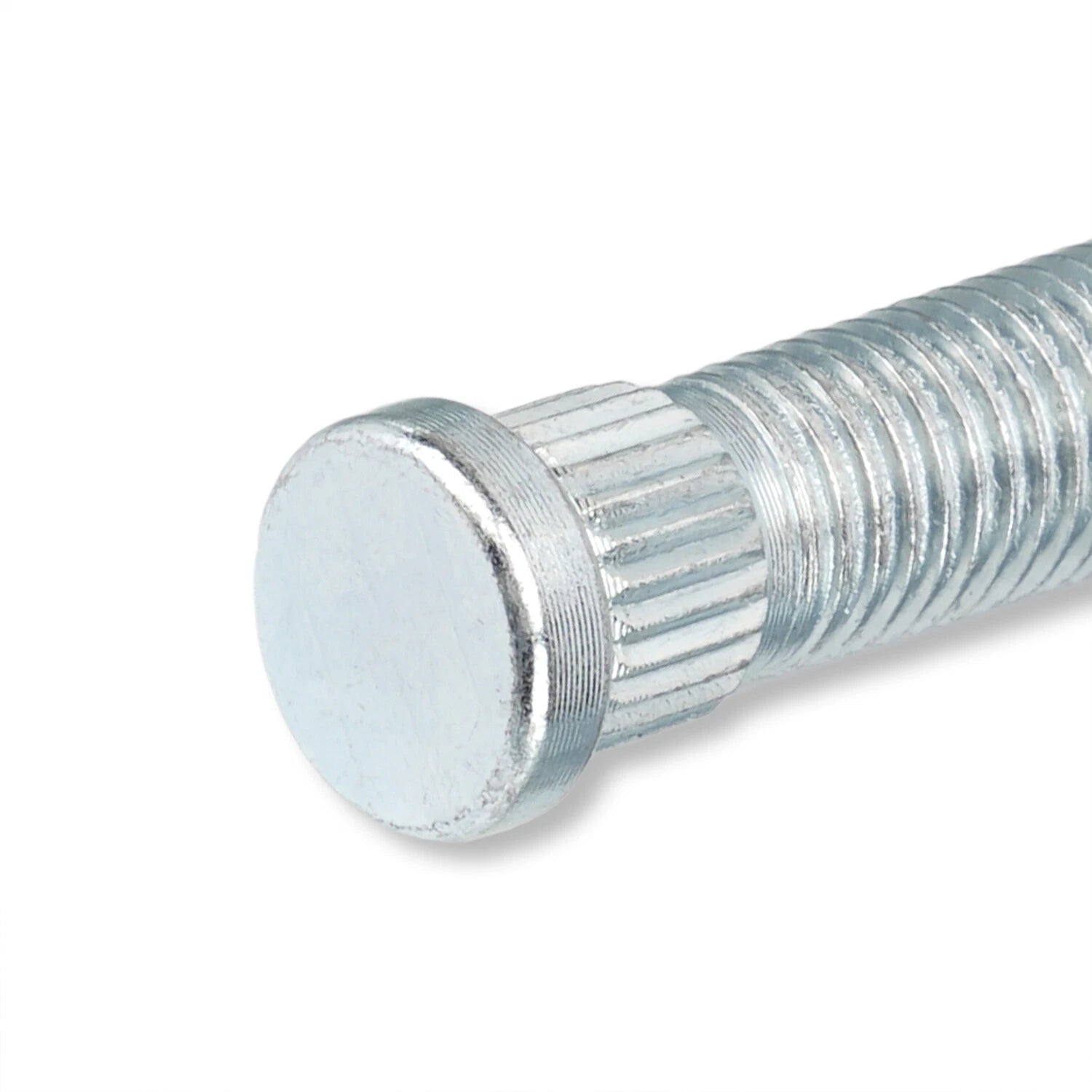

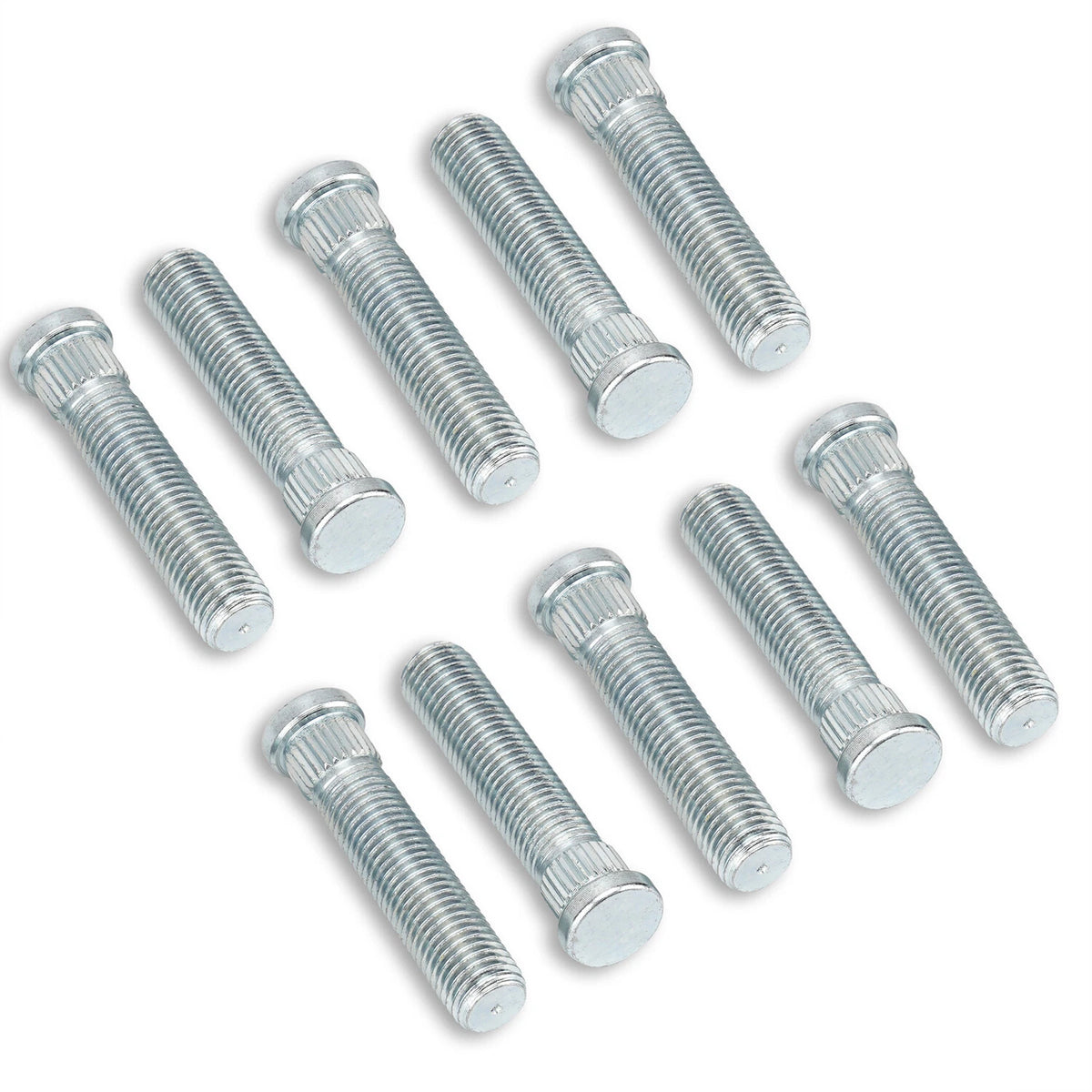

This pack contains 10 wheel studs for the listed 1982-2004 Chevy S10 application. Each stud has a round flange head, a knurled shoulder and an M12 x 1.50 threaded shaft. Lug nuts are not included.

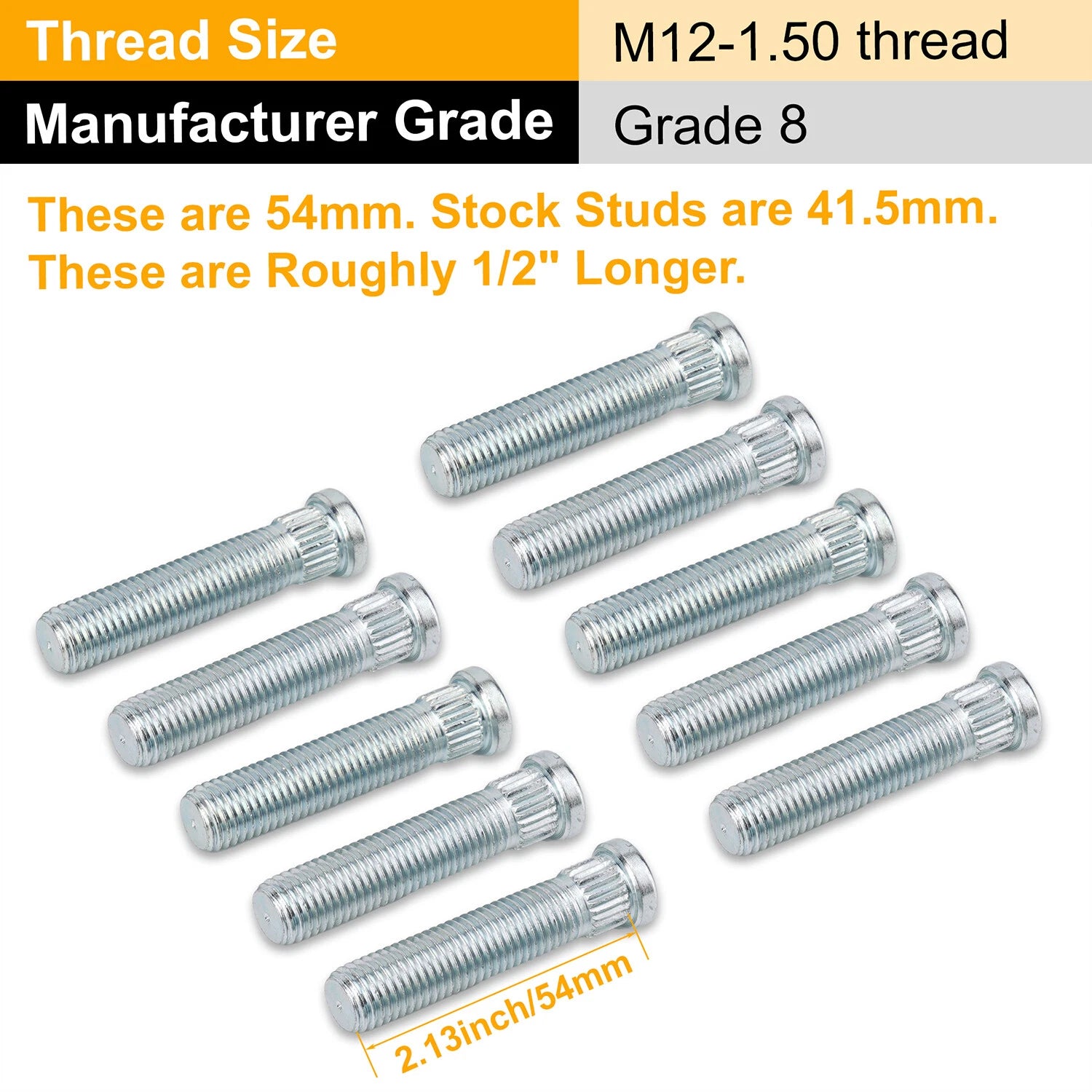

The stated stud length is 54 mm, compared with the 41.5 mm stock length shown in the specification image. That is about 12.5 mm, or roughly 1/2 inch, of added length. The 1/2-inch figure describes the extension; the thread remains M12 x 1.50.
Stud specifications
- Package quantity
- 10 wheel studs
- Listed application
- Chevy S10 / S-10, 1982-2004
- Thread size
- M12 x 1.50
- Listed stud length
- 54 mm / 2.13 in
- Stock length used for comparison
- 41.5 mm
- Approximate added length
- 12.5 mm / 1/2 in
- Listed grade
- Grade 8; grading standard and test certification are not specified
Check the hub and lug nuts
Knurl diameter and knurl length are not specified. Compare those dimensions with the original stud and hub before ordering, and confirm which axle and hub assembly your truck uses. The year range alone does not establish the press fit.
Check the added length against your wheel and lug nuts, especially the available depth of closed-end nuts. Have the studs installed using the service procedure for your hub, and use the wheel fastening torque specified for your vehicle and wheel combination.
