226363-01 RH liftgate torsion spring for Maxon GPT GPTLR GPTWR

226363-01 right-hand liftgate torsion spring

The 226363-01 torsion spring is a replacement for the right-hand side of a liftgate platform hinge. It is listed for Maxon GPT, GPTLR and GPTWR liftgates. The spring has a black finish, a cylindrical coil and two projecting legs of different lengths.

Spring details

Part reference

226363-01

Specified side

RH (right-hand / passenger side)

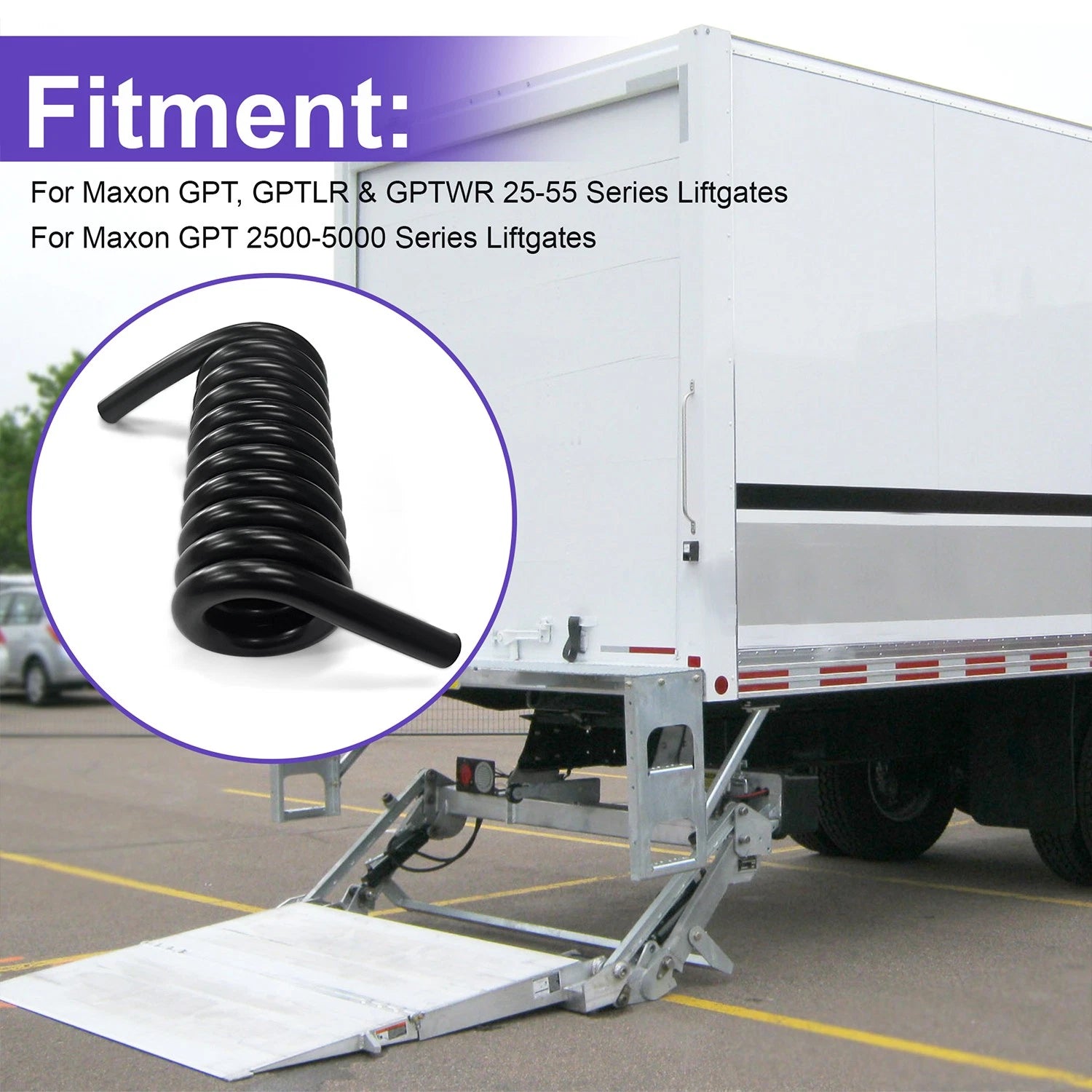

Listed liftgate families

Maxon GPT, GPTLR and GPTWR; verify the model and serial number

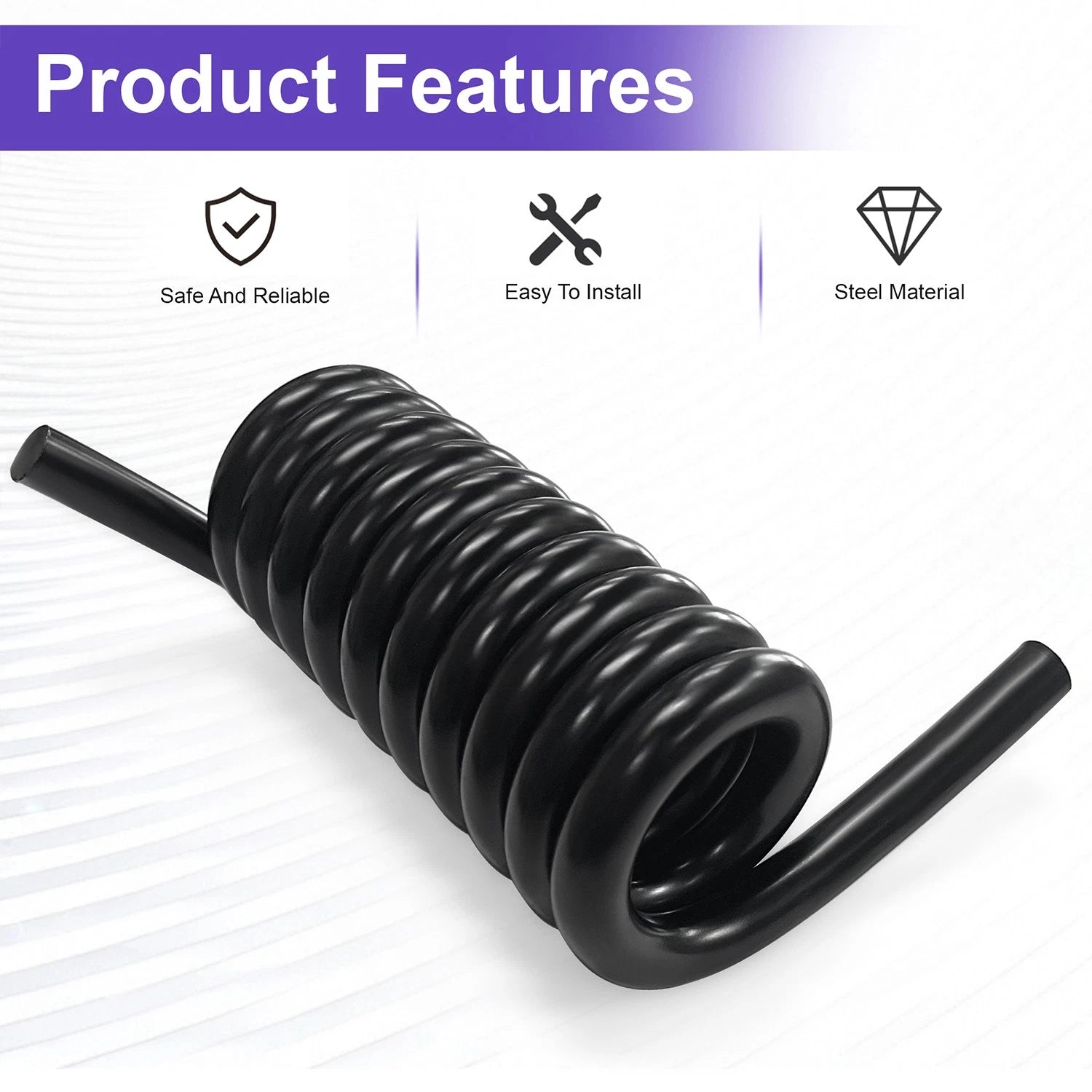

Material

Steel

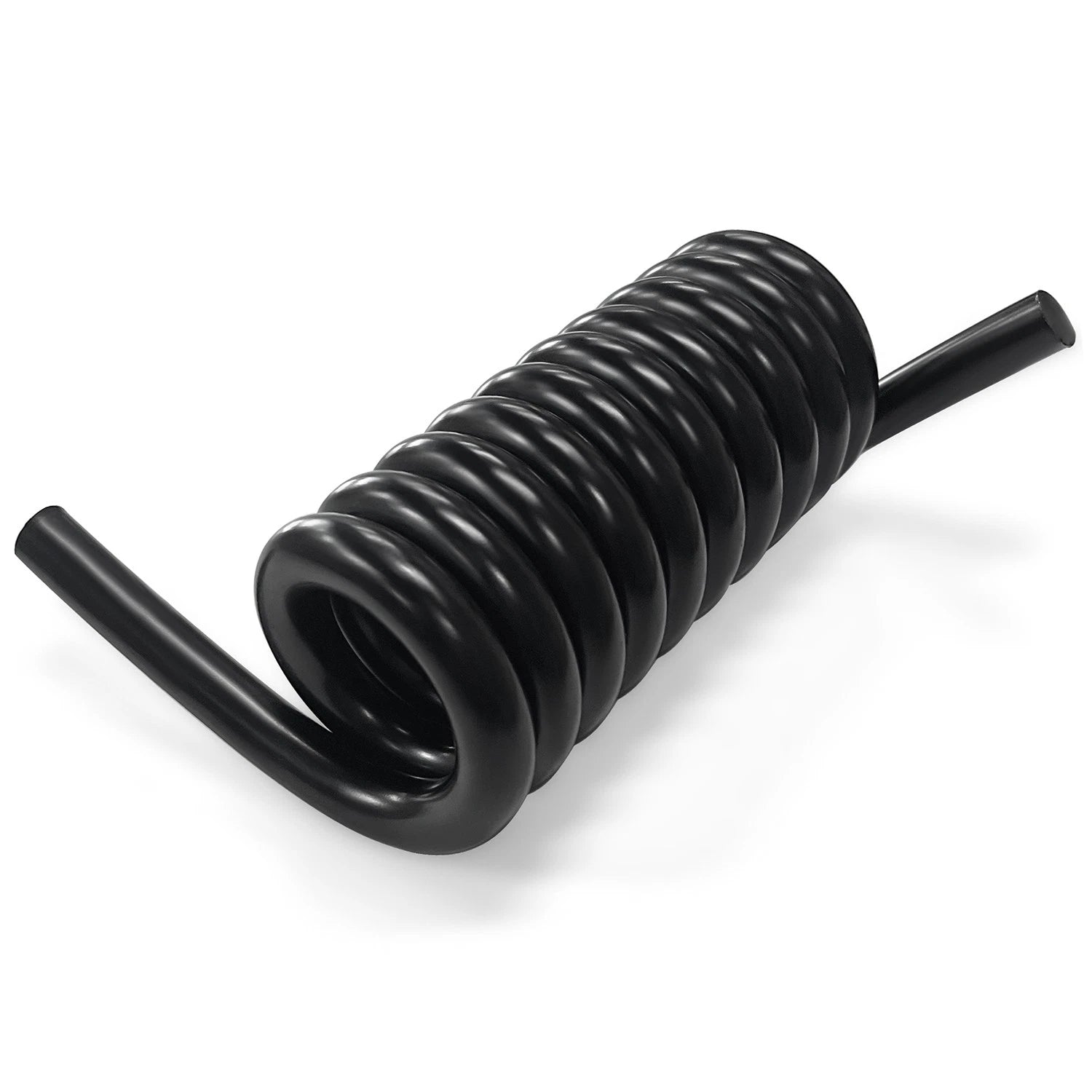

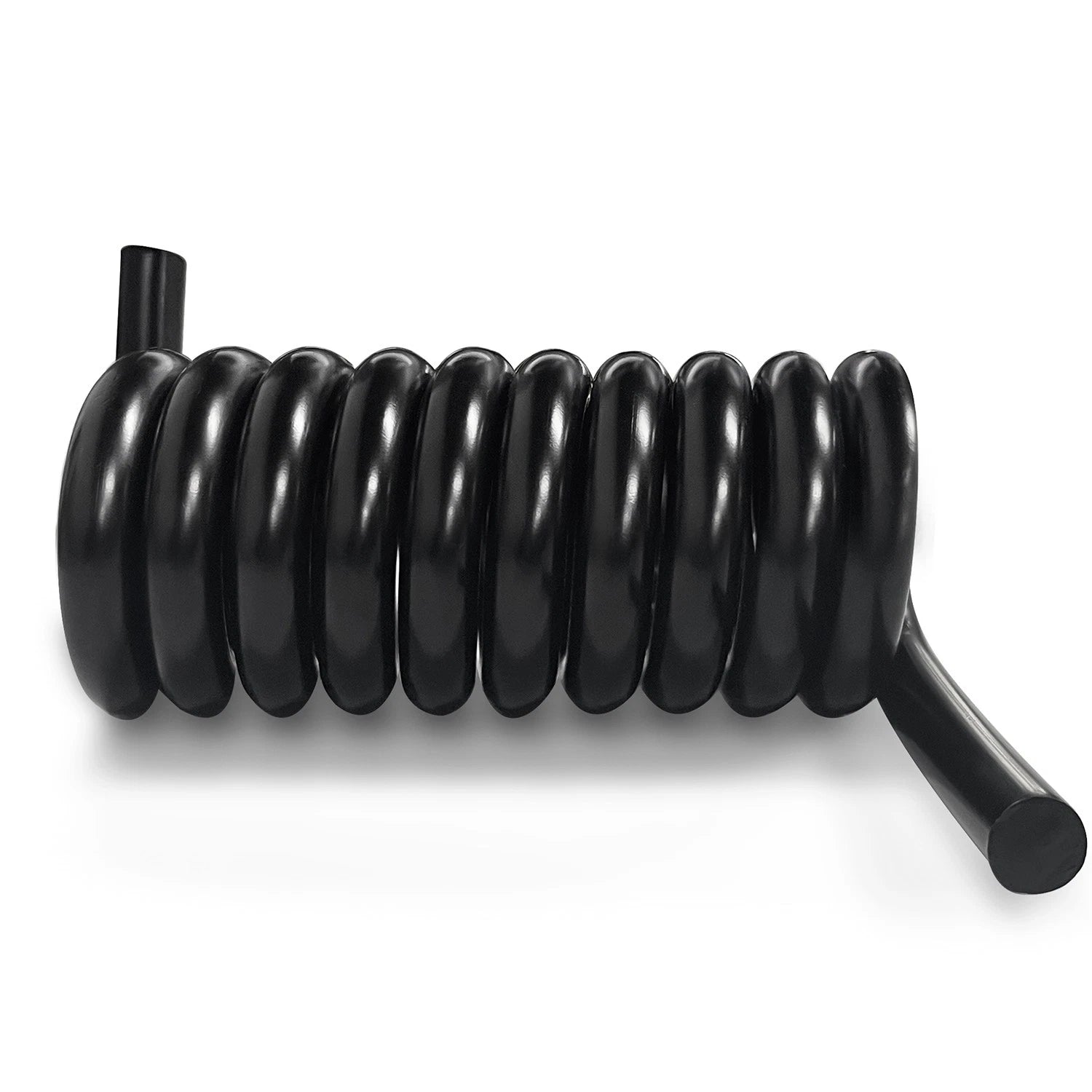

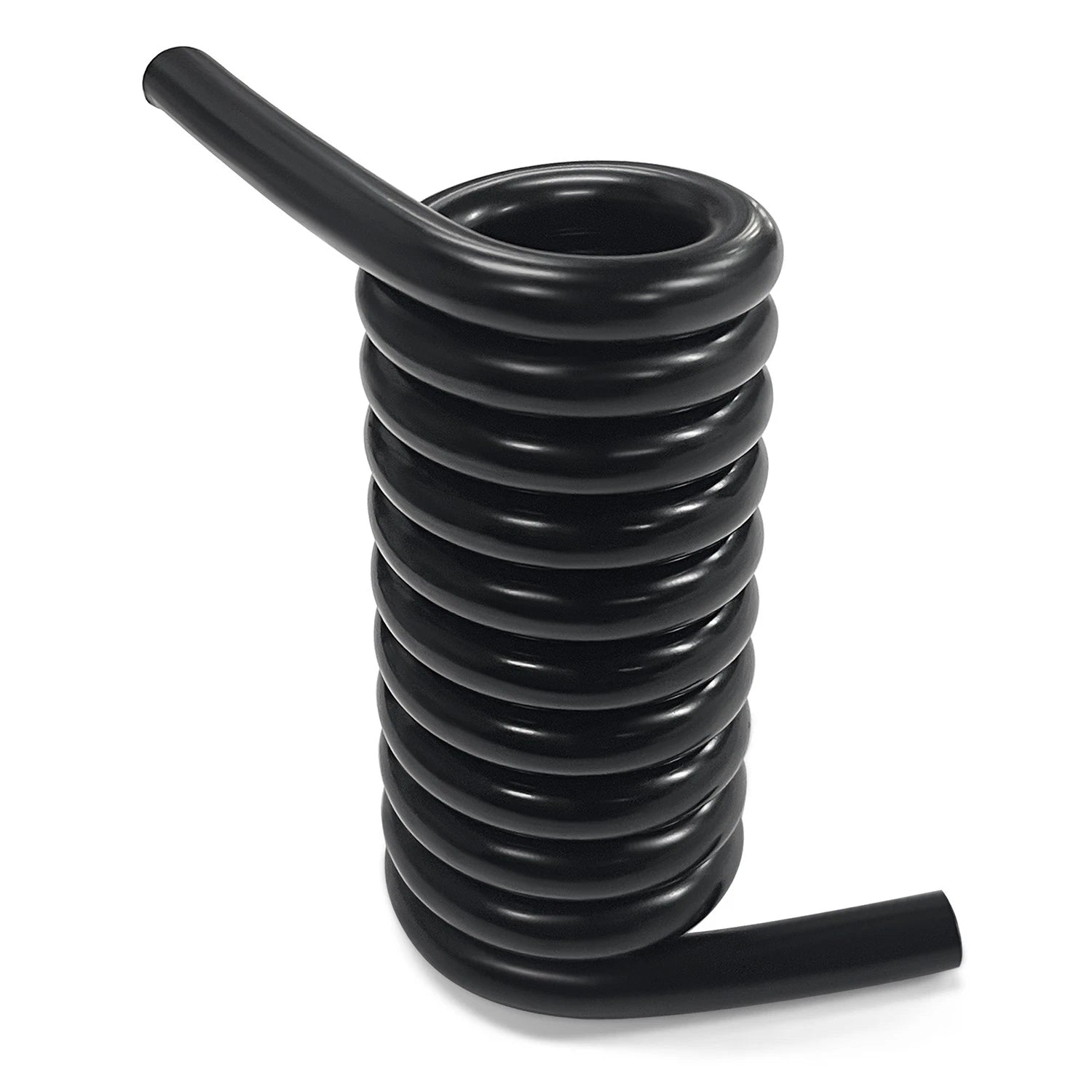

Pictured form

Cylindrical coil with a long leg and a short leg

Visible finish

Black

Choose the correct side

Maxon's GPT maintenance manual identifies 226363-01 as the RH spring and 226363-02 as the LH spring. Match the side designation in your liftgate's parts diagram. Compare the coil winding and the positions of both legs with the spring you are replacing.

Resolve the size before ordering

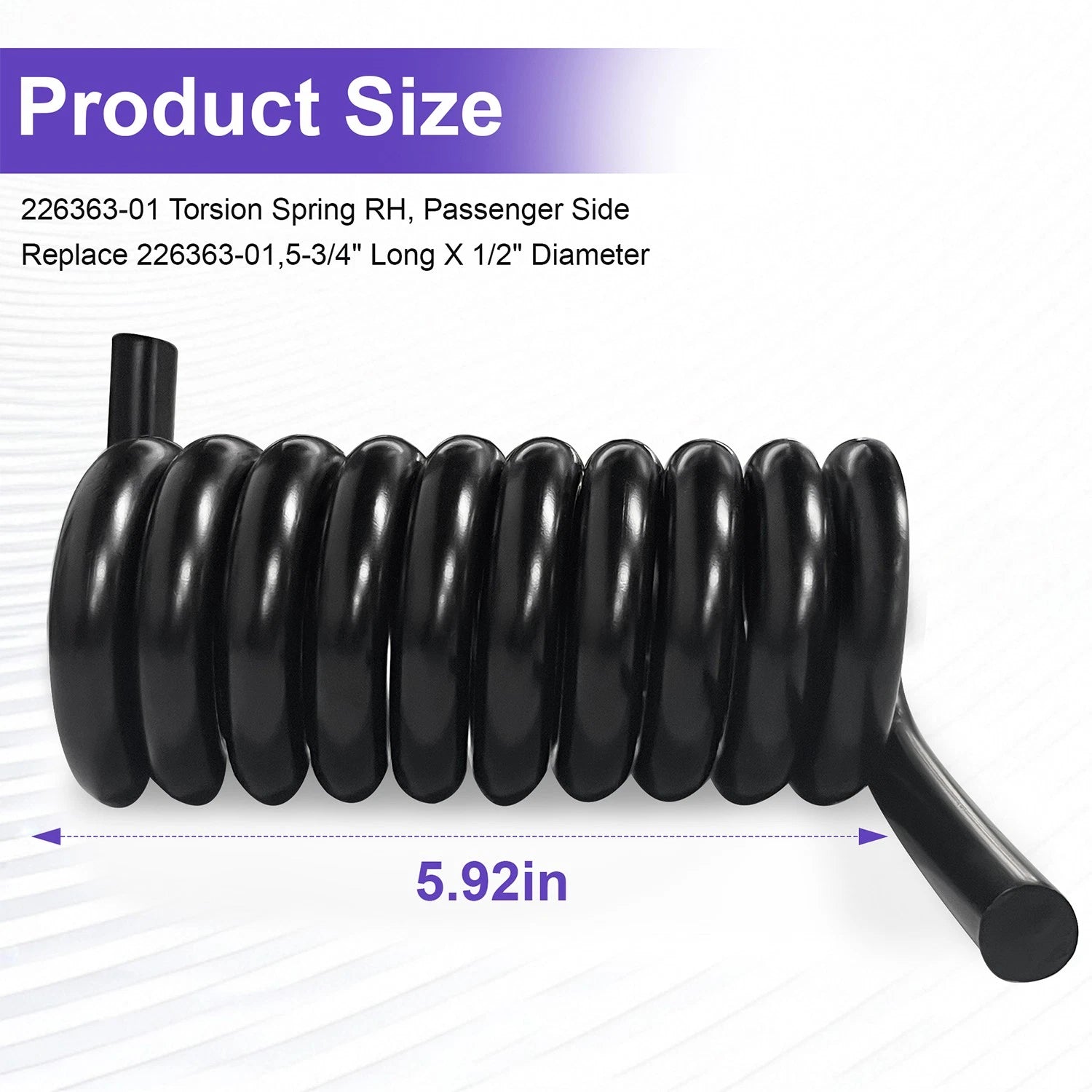

The size image gives two length values: 5-3/4 in in the caption and 5.92 in beside the measurement arrow. It also gives a 1/2 in diameter without defining the measuring points. Confirm the actual dimensions, including the coil opening and leg lengths, before ordering.

Check that the spring fits the hinge pin and that each leg meets the correct bracket or contact surface. Liftgate capacity and family name alone do not identify the correct spring for every platform revision.

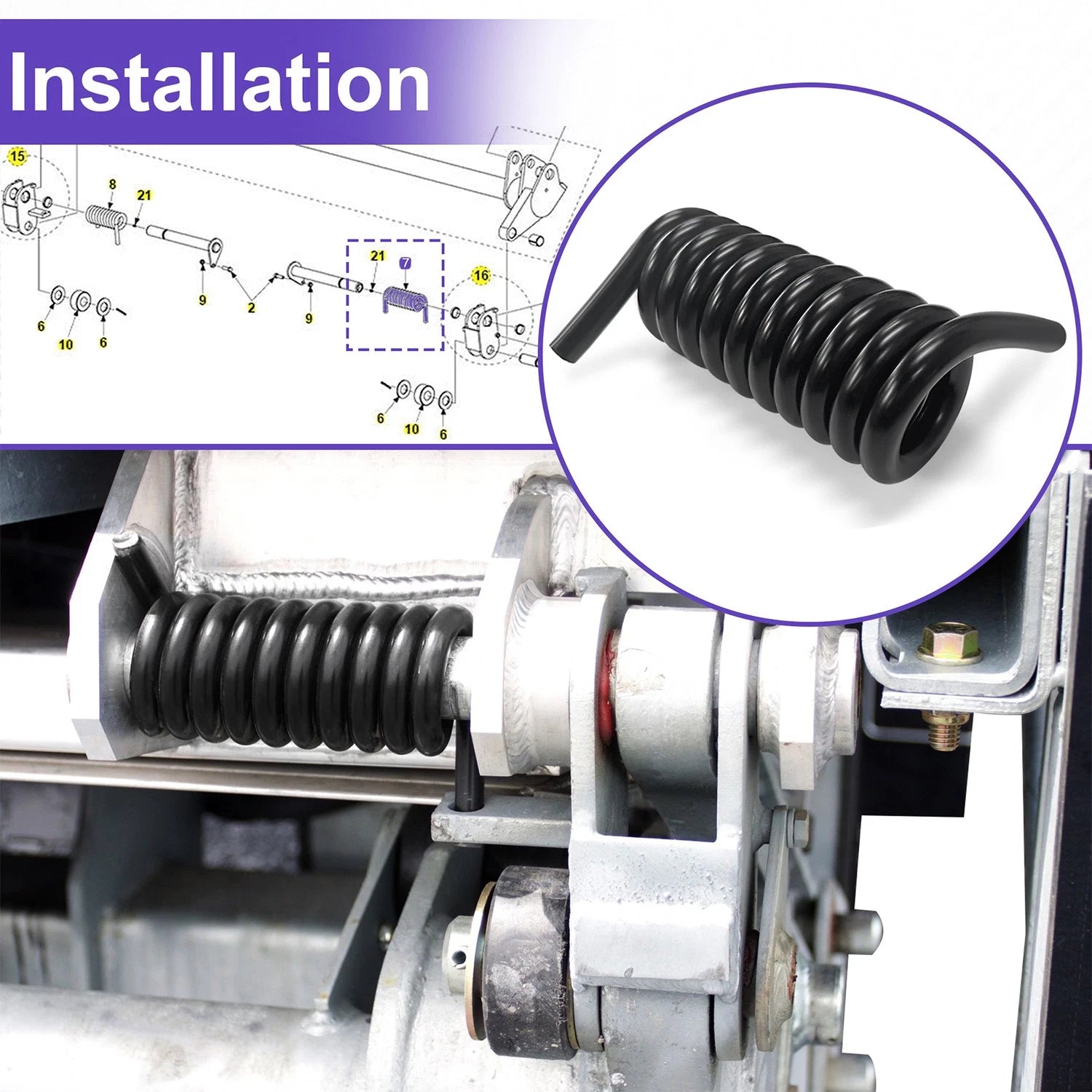

Replacement work

Maxon's maintenance instructions require the spring tension to be released before removing the hinge pin. Have a trained liftgate technician follow the procedure for your model. The photos show the spring; a hinge pin, bolt, lock nut and mounting bracket are not confirmed as supplied items.
